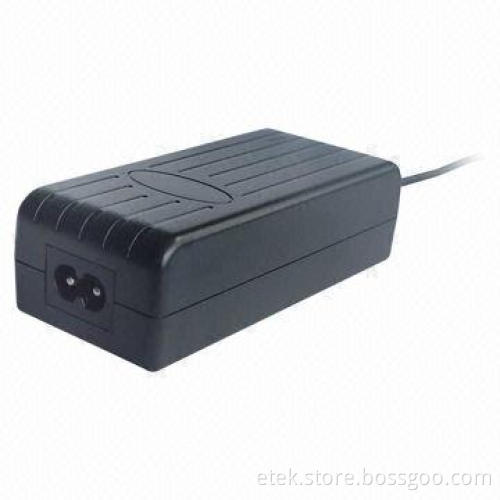

60W Switching Power Adapter, Connected with Certified Input Power Cords

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specifications:

Input/output:
- I/P: 90-264V, 47-63Hz
- O/P voltage: 5.0-36V (5% precision)
- O/P current: 0-7.0A
- Maximum O/P power: 40-60W
- Ripple and noises: 80-300W
- Line regulation: ±1%
- Load regulation: ±5%
Parts applied to digital camera, CD/MP3/MP4 player, communication terminals, test equipment, PDA mobile phones and some portable devices
Reliability:
- Burn-in: 100% full load, 40 ±5℃, 4 hours min
- Leakage current: 0.25mA maximum at 264V AC
- Withstanding voltage: (between primary and secondary) 3,000V AC, 1 minute, 10mA (maximum)
- MTBF: meet MIL-HDBK-217F over 50,000 hours, full load, 25℃
Emissions and immunity:
- FCC part15 class B
- EN55022 class B
- AS/NZS3548, AS/NZS4251.1 class B
- GB9254-1998/GB17625.1-2003
- ISPR22 class B, CNS13438 class B
- EN55024/A1: 2001
- IEC61000-4-2: IEC61000-4-3
- IEC61000-4-4: IEC61000-4-5
- IEC61000-4-6: IEC61000-4-11
Over-voltage/over-current/short-circuit/thermal shutdown protection
Colors: white and black
Packaging: gift box, 60 pieces in each 415 x 340 x 270mm carton, 41,040 pieces/20ft container

Input/output:

Parts applied to digital camera, CD/MP3/MP4 player, communication terminals, test equipment, PDA mobile phones and some portable devices

Reliability:

Burn-in: 100% full load, 40 ±5℃, 4 hours min
Leakage current: 0.25mA maximum at 264V AC
Withstanding voltage: (between primary and secondary) 3,000V AC, 1 minute, 10mA (maximum)
MTBF: meet MIL-HDBK-217F over 50,000 hours, full load, 25℃

Emissions and immunity:
