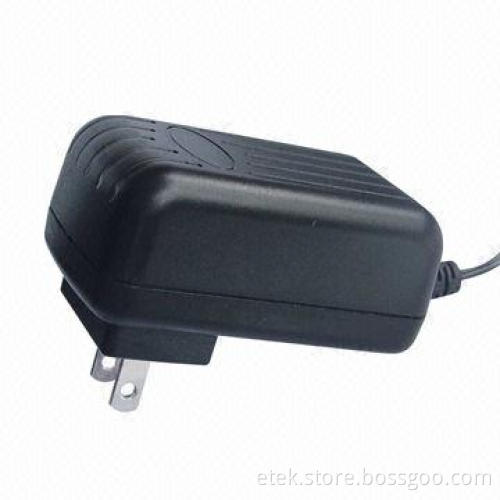

Power Adapter with High-efficiency and High-reliability, 18W Power

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Specifications:

Reliability:

Burn-in: 100% full load, 40 ±5°C, 4 hours (minimum)
Leakage current: 0.25mA maximum at 264V AC
Withstanding voltage: (between primary and secondary) 3,000V AC 1 minute 10mA (maximum)
MTBF: meet MIL-HDBK-217F over 50k hours, full load, 25°C

Input: 90-264V, 50-60Hz

Output voltage: 2.8-24V (5% precision)

Output current: 0-3.0A

Maximum output power: 9.9-20W

Ripple and noises: 50-70mV

Line regulation: ±1%

Load regulation: ±5%

Burn-in: 100% full load, 40 ±5°C, 4 hours (minimum)

Leakage current: 0.25mA maximum at 264V AC

Withstanding voltage: (between primary and secondary) 3,000V AC 1 minute 10mA (maximum)

MTBF: meet MIL-HDBK-217F over 50k hours, full load, 25°C
