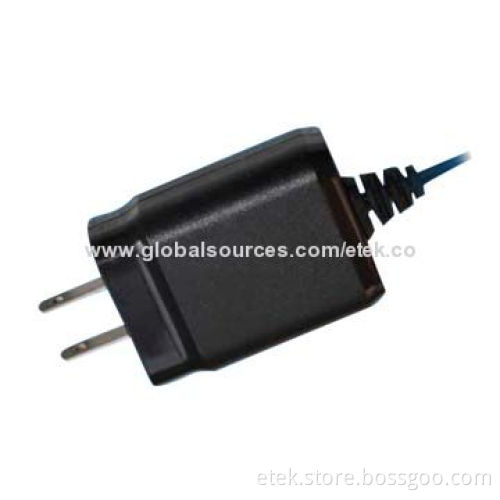

SPC & PDA & camera, electrical and IT products/travel charger with90~264V input, 10W&5V/2.1A output

SPC & PDA & camera, electrical and IT products/travel charger with90~264V input, 10W&5V/2.1A output

Get Latest Price

Payment Type:: Can negotiate

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Can negotiate

Product Description

Specifications:

Input voltages: 90 to 264V AC
Input current: 0.25A
Input frequency range: 47 to 63Hz
Output power: 10W
Output voltage: 5V DC
Output current: 0 to 2.1A
Output ripple and noise range: 100mv
Operating temperature: -0°C to 40°C
Storage temperature: -20°C to 65°C
DC cored AWG: 20#, length 1.5m; or can be customized
Input power cords & output connectors (plug) can customized by customer (usual have stereo plug, quick plug, lo plug, USB plug), but all are certified to safety approval respectively

Size:

56x41.5x24.3mm
63X44X25 mm

Function & features:

Over-current protection
Over-voltage protection
Short-circuit protection
Thermal shutdown protection

High reliability:

Strict burn-in testing: 100% full load, 40+5°C, 4Hrs min.
Low leakage current: 0.25ma at 264Vac
Withstanding voltage : 3000Vac 1 minute 10ma max
MTBF: meet MIL-HDBK-217F over 50,000 hours, full load, 25°C
High efficiency: meet US Energy Star/CEC/AS/N24665-2005 EPS energy efficiency requirements
With on-line LED power indicator
Eco-friendly
Light & convenient plug in
Application: digital camera, CD/MP3/MP4 player, communication terminals, tester Equipment, PDA mobile phones, other portable devices or machines
Certificates: UL, PSE, CCC, FCC, KC, GS, CE, TUV
Solution provide according to customers’ products

Input voltages: 90 to 264V AC

Input current: 0.25A

Input frequency range: 47 to 63Hz

Output power: 10W

Output voltage: 5V DC

Output current: 0 to 2.1A

Output ripple and noise range: 100mv

Operating temperature: -0°C to 40°C

Storage temperature: -20°C to 65°C

DC cored AWG: 20#, length 1.5m; or can be customized

Input power cords & output connectors (plug) can customized by customer (usual have stereo plug, quick plug, lo plug, USB plug), but all are certified to safety approval respectively

56x41.5x24.3mm

63X44X25 mm

Over-current protection

Over-voltage protection

Short-circuit protection

Thermal shutdown protection

Strict burn-in testing: 100% full load, 40+5°C, 4Hrs min.

Low leakage current: 0.25ma at 264Vac

Withstanding voltage : 3000Vac 1 minute 10ma max

MTBF: meet MIL-HDBK-217F over 50,000 hours, full load, 25°C

High efficiency: meet US Energy Star/CEC/AS/N24665-2005 EPS energy efficiency requirements

With on-line LED power indicator
