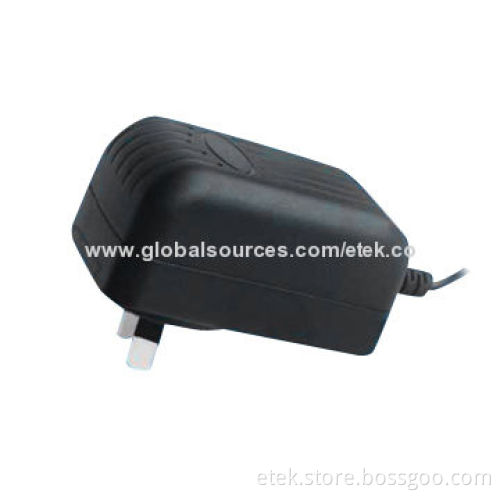

Switching Power Supply/Adapter with 90-264V Input, 12W Power Output, 24V/2.5A Maximum Output

Switching Power Supply/Adapter with 90-264V Input, 12W Power Output, 24V/2.5A Maximum Output

Get Latest Price

Payment Type:: Negotiate

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Negotiate

Product Description

Specifications:

Input voltage: 90 to 264V AC
Input current: 0.35A
Input frequency range: 47 to 63Hz
Output power: 12W
Output voltage: 5 to 24V DC
Output current: 0 to 2.5A
Output ripple and noise range: 100mV
Operating temperature: -0 to 40°C
Storage temperature: -20 to 65°C
DC cored AWG: 18#, length 1.5m, or can be customized
Case colors: white and black
Input power cords and output connectors (plug) can customized by customer (usual have stereo plug, quick plug, lo plug, USB plug), but all are certified to safety approval respectively

Functions and features:

Over-current protection
Over-voltage protection
Short-circuit protection
Thermal shutdown protection

High-reliability:

Strict burn-in testing: 100% full load, 40 +5°C, 4 hours (minimum)
Low-leakage current: 0.25mA at 264V AC
Withstanding voltage: 3,000V AC 1 minute/10mA (maximum)
MTBF: meet MIL-HDBK-217F over 50,000 hours, full load, 25°C

High-efficiency: meet US EnergyStar/CEC/AS/N24665-2005 EPS energy efficiency requirements

With online LED power indicator

Eco-friendly with RoHS, REACH marks

Light and convenient plug-in

Applications: digital cameras, CD/MP3/MP4 players, communication terminals, tester equipment, PDA mobile phones, other portable devices or machines

Certificates: UL, PSE, CCC, FCC, KC, GS, CE, C-Tick, SA

Solution: provide according to customers’ products

Input voltage: 90 to 264V AC

Input current: 0.35A

Input frequency range: 47 to 63Hz

Output power: 12W

Output voltage: 5 to 24V DC

Output current: 0 to 2.5A

Output ripple and noise range: 100mV

Operating temperature: -0 to 40°C

Storage temperature: -20 to 65°C

DC cored AWG: 18#, length 1.5m, or can be customized

Case colors: white and black

Input power cords and output connectors (plug) can customized by customer (usual have stereo plug, quick plug, lo plug, USB plug), but all are certified to safety approval respectively

Over-current protection

Over-voltage protection

Short-circuit protection

Thermal shutdown protection

Strict burn-in testing: 100% full load, 40 +5°C, 4 hours (minimum)

Low-leakage current: 0.25mA at 264V AC

Withstanding voltage: 3,000V AC 1 minute/10mA (maximum)

MTBF: meet MIL-HDBK-217F over 50,000 hours, full load, 25°C
