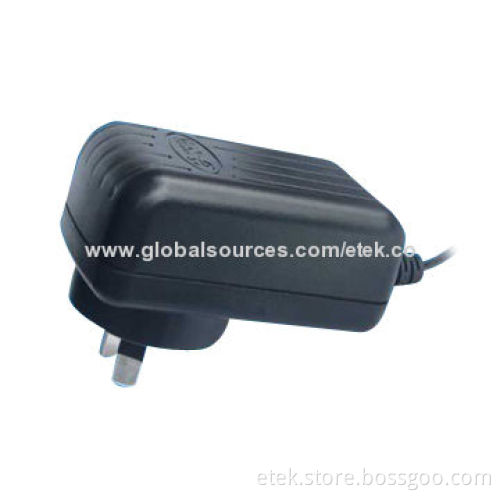

18W 24V/3.0A Output Adapter with 90-264V Input for SMPS, PDA, Cameras, Portable Electrical Products

18W 24V/3.0A Output Adapter with 90-264V Input for SMPS, PDA, Cameras, Portable Electrical Products

Get Latest Price

Payment Type:: Negotiate

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Negotiate

Product Description

Specifications:

Input voltage: 90 to 264V AC
Input current: 0.6A (maximum)
Input frequency range: 47 to 63Hz
Output power: 18W
Output voltage: 2.8 to 24V DC
Output current: 0 to 3A
Output ripple and noise range: 50-150mV (maximum)
Operating temperature: -0 to 40°C
Storage temperature: -20 to 65°C
DC cored AWG: 18#, length 1.5m or can be customized
Case colors: white and black
Input power cords and output connectors (plug) can customized by customer (usual have stereo plug, quick plug, low plug, USB plug), but all are certified to safety approval respectively

Functions and features:

Over-current protection
Over-voltage protection
Short-circuit protection
Thermal shut down protection
High-reliability:
- Strict burn-in testing: 100% full load, 40+5°C, 4 hours (minimum)
- Low-leakage current: 0.25mA at 264V AC
- Withstanding voltage: 3,000V AC, 1 minute 10mA (maximum)
- MTBF: meet MIL-HDBK-217F over 50,000 hours, full load, 25°C
- High-efficiency: meet US EnergyStar/CEC/AS/N24665-2005 EPS energy efficiency requirements
- With online LED power indicator
- Eco-friendly with RoHS, REACH marks
Light and convenient plug-in
Applications: digital cameras, CD/MP3/MP4 players, communication terminals, tester equipment, PDA mobile phones, other portable devices or machines
Certificate: UL, PSE, CCC, FCC, KC, GS, CE, C-Tick, SA
Solution provide according to customers’ products

Input voltage: 90 to 264V AC

Input current: 0.6A (maximum)

Input frequency range: 47 to 63Hz

Output power: 18W

Output voltage: 2.8 to 24V DC

Output current: 0 to 3A

Output ripple and noise range: 50-150mV (maximum)

Operating temperature: -0 to 40°C

Storage temperature: -20 to 65°C

DC cored AWG: 18#, length 1.5m or can be customized

Case colors: white and black

Input power cords and output connectors (plug) can customized by customer (usual have stereo plug, quick plug, low plug, USB plug), but all are certified to safety approval respectively

Over-current protection

Over-voltage protection

Short-circuit protection

Thermal shut down protection

High-reliability:

Strict burn-in testing: 100% full load, 40+5°C, 4 hours (minimum)
Low-leakage current: 0.25mA at 264V AC
Withstanding voltage: 3,000V AC, 1 minute 10mA (maximum)
MTBF: meet MIL-HDBK-217F over 50,000 hours, full load, 25°C
High-efficiency: meet US EnergyStar/CEC/AS/N24665-2005 EPS energy efficiency requirements
With online LED power indicator
Eco-friendly with RoHS, REACH marks

Light and convenient plug-in

Applications: digital cameras, CD/MP3/MP4 players, communication terminals, tester equipment, PDA mobile phones, other portable devices or machines

Certificate: UL, PSE, CCC, FCC, KC, GS, CE, C-Tick, SA

Solution provide according to customers’ products

Strict burn-in testing: 100% full load, 40+5°C, 4 hours (minimum)

Low-leakage current: 0.25mA at 264V AC

Withstanding voltage: 3,000V AC, 1 minute 10mA (maximum)

MTBF: meet MIL-HDBK-217F over 50,000 hours, full load, 25°C

High-efficiency: meet US EnergyStar/CEC/AS/N24665-2005 EPS energy efficiency requirements

With online LED power indicator

Eco-friendly with RoHS, REACH marks
