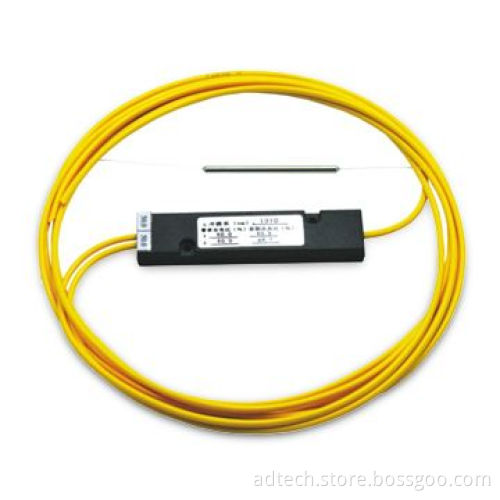

3.06dB Typical Insertion Loss Single Mode Tree/Star Type 1 x 2 Fiber Optic Coupler
  • 3.06dB Typical Insertion Loss Single Mode Tree/Star Type 1 x 2 Fiber Optic Coupler
3.06dB Typical Insertion Loss Single Mode Tree/Star Type 1 x 2 Fiber Optic Coupler

3.06dB Typical Insertion Loss Single Mode Tree/Star Type 1 x 2 Fiber Optic Coupler

Get Latest Price
Payment Type:
T/T in Advance or L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance or L/C at Sight
Product Description
Product Description
  • Features:
    • Low loss
    • Low polarization dependence
    • Environmentally stable
  • Applications:
    • Optic communication system
    • LAN
    • CATV
    • Test instrument
    • Fiber-optic sensor
  • Specifications:
    • Grade: A
    • Operating wavelength: 1,310 or 1,550nm (others on request)
    • Bandwidth: ±20nm
    • Excess loss: d0.1 (typical: 0.06dB)
    • Coupling ratio: 50/50%
    • Typical insertion loss: 3.06dB
    • Maximum insertion loss: 3.3dB
    • Polarization dependent loss: 0.1dB
    • Thermal stability: d0.2dB/°C
    • Directivity: e55dB (e60dB, 2 x 2)
    • Operating temperatures: -20 to 70°C
  • Packaging types:
    • 900um loose tube
    • 900um loose tube or 3mm loose cable (or 2mm)
    • FC/APC pigtail
  • Low loss
  • Low polarization dependence
  • Environmentally stable
  • Optic communication system
  • LAN
  • CATV
  • Test instrument
  • Fiber-optic sensor
  • Grade: A
  • Operating wavelength: 1,310 or 1,550nm (others on request)
  • Bandwidth: ±20nm
  • Excess loss: d0.1 (typical: 0.06dB)
  • Coupling ratio: 50/50%
  • Typical insertion loss: 3.06dB
  • Maximum insertion loss: 3.3dB
  • Polarization dependent loss: 0.1dB
  • Thermal stability: d0.2dB/°C
  • Directivity: e55dB (e60dB, 2 x 2)
  • Operating temperatures: -20 to 70°C
  • 900um loose tube
  • 900um loose tube or 3mm loose cable (or 2mm)
  • FC/APC pigtail
