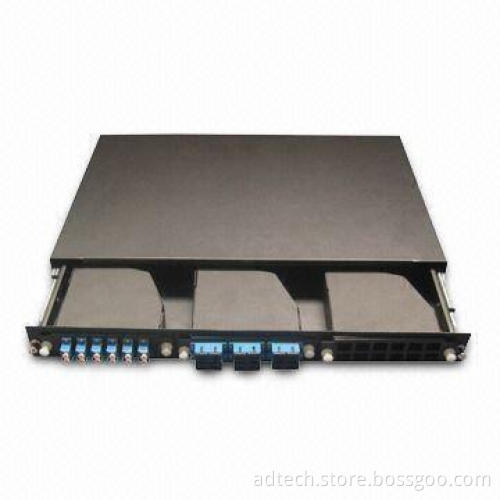

MPO MTP Patch Panel, Four Cable Entrance at Rear and Three Parts at Front Panel

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance or L/C at Sight

Product Description

Provides branch connection for fiber termination

It is an integrated unit for fiber management and can be used as distribution box

It divides into fix and sliding-out types

This equipment function is to fix and manage the fiber-optic cables inside the box as well as to provide protection

Patch panel is modular so they are applicable to your existing systems without any modification or additional work

Features:

19-inch standard size, fit for 19-inch rack and 23-inch size is also available on request
Standard size is 1U, 2U or 4U are available on request
12, 24, 48, 72 and 96 ports (optional)
Suitable for SC, FC, ST and LC adapters
Duplex or simplex is available
Smart design to supply firm protection for optic cable terminal connection and optic fiber adapter installation
Provides termination, protection, connection and management of fiber-optic cable
Compliant with RoHS Directive
Supplied unloaded
19-inch sliding-out type
Easy to operate
Four cable entrance at rear, three parts at front panel
Three pieces of front panel is changeable by modular panel and flexible choice for user
24 ports are available
Maximum capacity: 48 fibers
