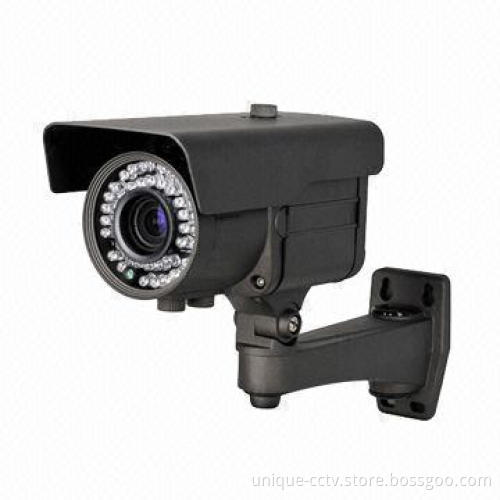

1/4" 1.0 Megapixel CMOS Sensor CCTV Camera with Auto-retrieve Function and Auto-connection Network

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

1/4" 1.0 megapixel CMOS sensor
Max image resolutions 1,280 x 720@25fps
H.264 main profile @ level 3.0 coding
Real time H.264 dual-stream encoding, resolution, frame rate, bit rate adjustable
Support color/BW mode converting, IR-cut filter
Build in motion detection, support alarm linkage, bi-directional real time audio transmission and alarm input and output is optional
auto-retrieve function and auto-connection network
Poe is optional
IP66 rated waterproof, outdoor use

Specifications:

Hardware:
- Processor: GM8126
- Sensor: 1/4" 1.0 Megapixel CMOS sensor
- Lens: 2.8 - 12mm Varifocal
- 3.0 megapixel lens
- IR LED 36pcs 5mm LEDs
- IR distance: 25 - 35m
- Day/night: IR-CUT
- Min. Illumination 0.5lux, 0lux with IR on
- Max S/N ratio: 50dB
- Video compression: H.264
- Image main stream: 1,280x720@1-25fps
- Sub stream: 640x360@1-25fps
- 320x180@1-25fps
- Bit rate: 128 - 4096kbps
- Supports CBR/VBR
- Image control Hue, saturation, brightness, contrast, exposure
- Auto Image Control AE, AWB
- Audio(Optional)
- Compression: G.711-A
- Bit rate: 64kbps/128kbps
- Talk-back: support
Network:
- Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, FTP and UPNP
- Compliance: ONVIF 2.1 (1.02 backward compatible)
- PC client and browser ISS, IE6.0 and above
- Mobile phone: iPhone, iPad, Android
- WiFi Encryption WAP, WAP2
Interface:
- Audio input (optional) 1 CH 3.5mm audio interface, MIC in/line in
- Audio output (optional) 1 CH 3.5mm audio interface
- LAN 1 RJ45 10M/100M Ethernet port
General:
- Working temperatures: -10℃~ +55℃
- Working humidity range: 0 - 90%
- Protection level: IP66 rated waterproof
- Power supply: DC 12 V/1A
- Power consumption: Maximum 6W
- Approvals: CE , FCC & RoHS
Download more information about this product

1/4" 1.0 megapixel CMOS sensor

Max image resolutions 1,280 x 720@25fps

H.264 main profile @ level 3.0 coding

Real time H.264 dual-stream encoding, resolution, frame rate, bit rate adjustable

Support color/BW mode converting, IR-cut filter

Build in motion detection, support alarm linkage, bi-directional real time audio transmission and alarm input and output is optional

auto-retrieve function and auto-connection network

Poe is optional

IP66 rated waterproof, outdoor use

Hardware:

Network:

Protocols: TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, FTP and UPNP
Compliance: ONVIF 2.1 (1.02 backward compatible)
PC client and browser ISS, IE6.0 and above
Mobile phone: iPhone, iPad, Android
WiFi Encryption WAP, WAP2

Interface:
