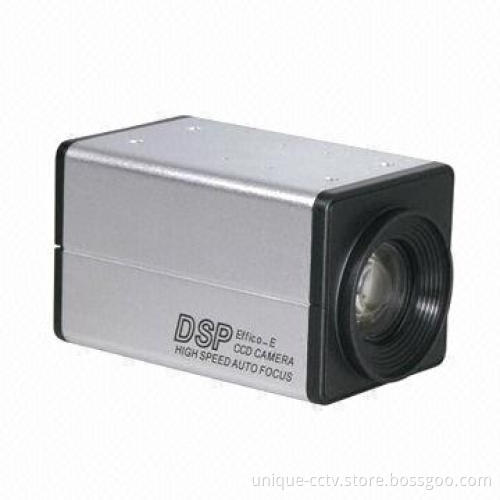

600TVL OSD Menu RS485 Control CCTV Zoom Camera, IR Cut Optional and 22/27/30/36x Optical Zoom Lens

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Number of pixel PAL (H x V): (H) 960 x (V) 596

Scanning system: 2:1 internal

Pickup device: 1/4-inch solid state image sensor

System of signal: PAL/NTSC

S/N ratio: above 52dB (AGC off)

Horizontal resolution: 420TVL

Video output: 1.0 V p-p/75Ω

Built-in lens: 27 x zoom lens (3.9 to 105.3mm, F1.6 to 3.7)

Angle of view: Horizontal: 47° (wide)/3° (tele)

Minimum illumination: 1 lux (DDS mode), 0.1 lux (day and night model)

Synchronization system: internal

Camera control: RS-422/485

Operation system: on/off (English/Chinese)

Backlight compensation: on/off

Black and white: on/off

Electronic shutter: NTSC: 1/60 to 1/10,000 seconds, PAL: 1/50 to 1/10,000 seconds

White balance: auto/push auto

Supplied voltage: 9V DC to 15V (recommendation)

Power requirement: maximum, 4.5W/360mA

Dimensions (L x W x H): 103 x 60 X 60.4m
