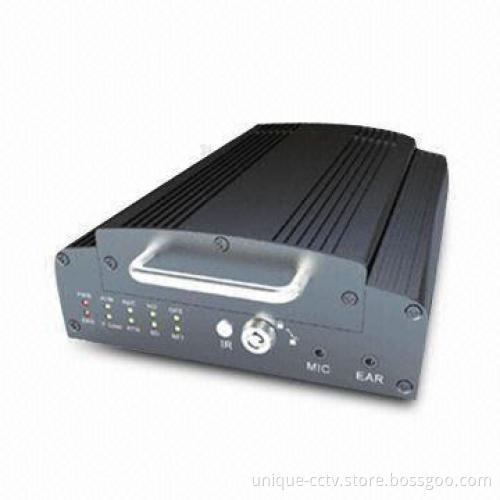

GPS/G-sensor Mobile DVR with 12V/1.5A Power Output

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

H.264 main profile video compression format
Supports 1 to 4 channels video input
Adopts 10-bit video decoder processor to ensure picture quality, and each video channel is attached with an independent video decoder to avoid disturbing from each other
Industrial grade design: all electronic components conform to industrial standard through the entire design, including the special connectors dedicated for mobile DVR
Built-in GPS, G sensor (optional)
Built-in wireless module like 3G (EVDO, HSPA, HSDPA), GPRS, Wi-Fi (optional)
Supports IP call function (optional)
G.726 audio compression, 4CH audio input, 1CH audio output
With the special UPS technology, the DVR will work for another 10 to 15sec after power failure, which makes the device shut down normally and keep the file safe
Real time recording: 100f/s (PAL) and 120f/s (NTSC)
Recording resolution: CIF/ 2CIF/D1 optional, maximum support 2CH of D1 + 2CH of CIF
6CH alarm input (level input), 1CH alarm output (relay output)
RS232 interface for remote control
RJ45 10M/100M Ethernet port
Video recording mode: auto, alarm, timed and manual recording
Video file format is ASF
File can be played by general media player VLC or our customized software which support 1 channel or 4 channels synchronous playback
Storage: maximum 1pc 2.5-inch hard disk with removable HDD housing plus 1pc 32GB SD card Supports HDD heater function and SD card connector import from Japan
Quick start-mode: the device will turn to working in 25sec after power on
Other start or close mode including ACC on, timed turn on/off, manual boot/shutdown the device
Voltage supply range is from 6 to 48V, the DVR is compatible with the most of vehicles
Power output: 12V/1.5A
Energy-efficient design, the power consumption is less than 5W with normal operating state

H.264 main profile video compression format

Supports 1 to 4 channels video input

Adopts 10-bit video decoder processor to ensure picture quality, and each video channel is attached with an independent video decoder to avoid disturbing from each other

Industrial grade design: all electronic components conform to industrial standard through the entire design, including the special connectors dedicated for mobile DVR

Built-in GPS, G sensor (optional)

Built-in wireless module like 3G (EVDO, HSPA, HSDPA), GPRS, Wi-Fi (optional)

Supports IP call function (optional)

G.726 audio compression, 4CH audio input, 1CH audio output

With the special UPS technology, the DVR will work for another 10 to 15sec after power failure, which makes the device shut down normally and keep the file safe

Real time recording: 100f/s (PAL) and 120f/s (NTSC)

Recording resolution: CIF/ 2CIF/D1 optional, maximum support 2CH of D1 + 2CH of CIF

6CH alarm input (level input), 1CH alarm output (relay output)

RS232 interface for remote control

RJ45 10M/100M Ethernet port

Video recording mode: auto, alarm, timed and manual recording

Video file format is ASF

File can be played by general media player VLC or our customized software which support 1 channel or 4 channels synchronous playback

Storage: maximum 1pc 2.5-inch hard disk with removable HDD housing plus 1pc 32GB SD card Supports HDD heater function and SD card connector import from Japan

Quick start-mode: the device will turn to working in 25sec after power on

Other start or close mode including ACC on, timed turn on/off, manual boot/shutdown the device

Voltage supply range is from 6 to 48V, the DVR is compatible with the most of vehicles

Power output: 12V/1.5A

Energy-efficient design, the power consumption is less than 5W with normal operating state
