1 Channel Passive Video Transceiver/Video Balun
  • 1 Channel Passive Video Transceiver/Video Balun

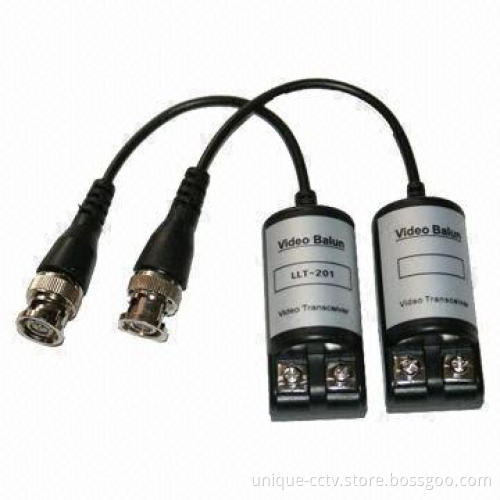

1 Channel Passive Video Transceiver/Video Balun

1 Channel Passive Video Transceiver/Video Balun

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • 1 channel passive video transceiver
  • Video transmission via twisted-pair cable
  • Transmission distance: 250 to 300m
  • Interface: twisted pair entrelec, video BNC (male)
  • No power required
  • Spec 1CH Passive
  • Video frequency response: DC-6Mhz common-mode/differential-mode
  • Rejection:15Khz 6Mhz 60dB typ
  • Audio/data: no
  • Power: no
  • Impedance Coax, male BNC:75ΩUTP(Screw less)Terminal Block or UTP RJ45 data connector: 100Ω
  • Wire type: one unshielded twisted pair 24-16AWG (0.5-1.31mm) per video signal: DC loop resistance 52 ohms per 1,000ft (18 ohms per 100m)
  • Surge suppression
  • Control: no
  • UTP port: terminal block
  • Dimensions: 70 x 25 x 22mm
  • Weight: 28g
  • Environment temperature: -10 to +50°C
  • Humidity: 0 to 95%
