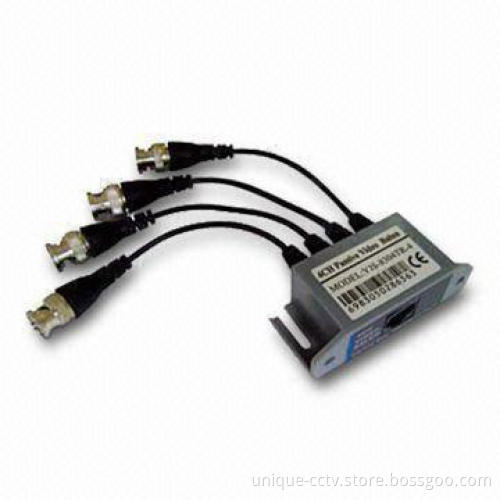

4CH Passive Twisted Pair Video Transceiver with 350 to 600m Transmission Distance

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Western Union

Product Description

4CH passive twisted pair video transceiver

Video transmission via UTP CAT5 cable

No power required

Transmission distance: 350 to 600m

Frequency response: DC-8MHz

CMRR (common mode rejection ratio): 60dB

Impedance: 75Ω (BNC), 100Ω (RJ45)

Working temperature: -10 to 70°C

Storage temperature: -30 to 70°C

Signal system: NTSC, PAL, SECAM and CCIR systems

External dimensions: 75 x 50 x 25mm (excluding BNC)

Type of the required wire: unshielded Cat-5 or above twisted pair wire

Characteristic impedance: 100 ± 20Ω

DC loop resistance: 18Ω/100m

Package weight: 0.5kg (1.102lbs)

Package dimensions: 20 x 20 x 20cm (7.87 x 7.87 x 7.87 inches)
