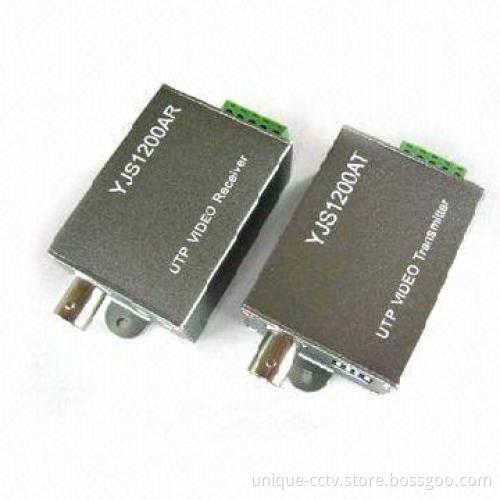

Video Balun, External Dimensions Measuring 105 x 58 x 29mm

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Video balun is to convert the video signal into the balanced signal applicable to be transmitted on common Cat-5 unshielded twisted pair wire with perfect transmission effect, which can be applied in the occasions such as video monitoring and video meeting and can transmit four channels of video image simultaneously on an 8-core Cat-5 twisted pair wire

It can simplify the wiring project and save wire use quantity

Features:

Adopts differential signal transmission with excellent anti-jamming ability
Save project wire expenses, each a pair of twisted pair wire transmits one channel of video signal and one common Cat-5 unshielded twisted pair wire can simultaneously transmit four channels of video signal
Full-motion CCTV video at distances up to 330m when used with any passive UTP video transceiver
Up to 1500m with any active UTP video receiver
No power required
Built-in transient suppression protection

Technical specifications:

Frequency response: 8MHz DC
CMRR (Common Mode Rejection Ratio): 60DB
Impedance:
BNC: 75Ω
RJ45:100Ω
Working temperature: -10 to 70 degrees C

Storage temperature: -30 to 70 degrees C

Applicable to NTSC, PAL, SECAM and CCIR systems

External dimensions: 105 x 58 x 29mm (excluding BNC)

Type of the required wire:

Unshielded Cat-5 or above twisted pair wire (Please use standard Cat-5 or above twisted pair wire. The wire quality will directly affect the transmitted image effect and transmission distance)

Characteristic impedance: 100 +/- 20Ω

DC loop resistance: 18Ω/100m

Differential capacitance: 62pf/m (maximum)

Connection method:

Clamp modular plugs for a Cat-5 unshielded twisted pair wire according to the connection order of TIA/EIA-568B (please refer to the following figure), connect the clamped modular plugs to the RJ45 sockets, connect the coax to the connection terminal

Adopts differential signal transmission with excellent anti-jamming ability

Save project wire expenses, each a pair of twisted pair wire transmits one channel of video signal and one common Cat-5 unshielded twisted pair wire can simultaneously transmit four channels of video signal

Full-motion CCTV video at distances up to 330m when used with any passive UTP video transceiver

Up to 1500m with any active UTP video receiver

No power required

Built-in transient suppression protection

Frequency response: 8MHz DC

CMRR (Common Mode Rejection Ratio): 60DB

Impedance:

BNC: 75Ω

RJ45:100Ω

Working temperature: -10 to 70 degrees C

Storage temperature: -30 to 70 degrees C

Applicable to NTSC, PAL, SECAM and CCIR systems

External dimensions: 105 x 58 x 29mm (excluding BNC)

Unshielded Cat-5 or above twisted pair wire (Please use standard Cat-5 or above twisted pair wire. The wire quality will directly affect the transmitted image effect and transmission distance)

Clamp modular plugs for a Cat-5 unshielded twisted pair wire according to the connection order of TIA/EIA-568B (please refer to the following figure), connect the clamped modular plugs to the RJ45 sockets, connect the coax to the connection terminal
