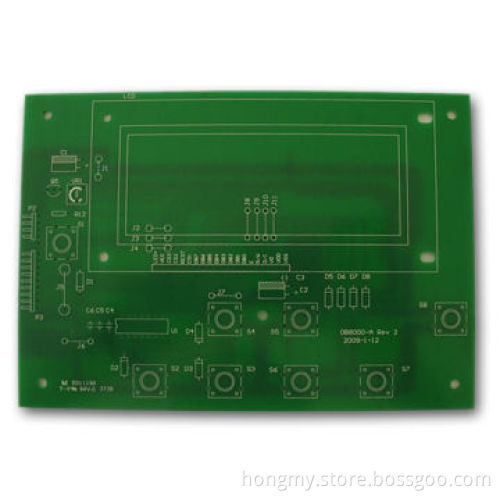

Double Layer PCB Board, HASL Lead-free, LCD Interface, 0.075mm Position Tolerance

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, PayPal

Product Description

Features:

Hole dimension tolerance:

Outline tolerance:

Warp and twist: 0.70%

Solder Mask Bridge: 0.0635mm (minimum)

Distance between lines to Board Bridge:

Impedance control tolerance: ±10%

Test voltage: 10 to 300V

Solder mask type: green, yellow, red, white, blue, matte green,matte black and more

Surface finished: HASL, immersion gold, immersion silver,gold-plated, gold finger and OSP

Layer: 1 to 20 layers

Material: FR-4, CEM-1, aluminum, Rogers, ta-conic

Finish board thickness: 0.2 to 3.2mm

External copper thickness: 35 to 210um

Internal copper thickness: 17 to 140um

Copper plating hole: 18 to 40um

Trace width and line spacing: 0.075/0.1mm (3/4 mils)

CNC hole diameter: 0.20mm (minimum)

Punching hole diameter: 0.9mm (35 mils) (minimum)

Panel size: 610 x 508mm (maximum)

Hole position tolerance: 0.075mm

PTH: 0.075mm

NPTH: 0.05mm

CNS: 0.125mm

Punching: 0.15mm

Outline: 0.25mm (minimum)

V-cut: 0.40mm
