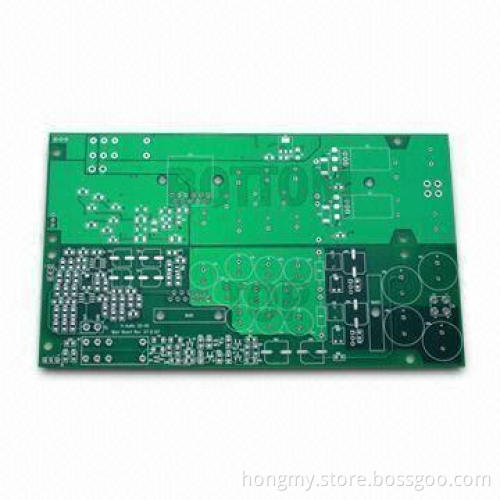

Rigid Double-sided PCB Circuit with FR4 Base and HASL Surface

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C or Western Union

Product Description

Specifications:

Material: FR-4
With HASL surface
Minimum line width/space: 0.1/0.1mm
With UL, SGS and RoHS marks
Minimum hole size: 0.2mm
PCB manufacture capability
Technology project
Manufacture capability
Type: aluminum/copper/iron base board
Surface finishing: HASL/immersion tin/goldplating/OSP/immersion silver
Layers count: 1 to 12 layers
Maximum dimensions: 1,100 x 480mm
Minimum dimensions: 5 x 5mm
Minimum trace and line spacing: 0.1mm
Warp and twist:
- <0.5mm (thickness: 1.6mm, dimensions: 300 x 300mm)
- Finish product thickness: 0.2 to 4.5mm
Copper thickness:
- 18, 35, 70, 105 and 140um
- Hole inner copper thickness: 18 to 40um
- Hole position tolerance: ±0.075mm
Minimum punching hole diameter:
- Board thickness: 1.0mm (<1.0mm), 1.5mm (1.2 to 3.0mm)
The minimum punching square slot:
- Board thickness:
  - 0.4 to 3.2mm
  - <1.0mm: 0.8 x 0.8mm
  - 1.2 to 3.0mm: 1.0 x 1.0mm
- Silk prints circuit tolerance: ±0.075mm
- Outline tolerance:
  - CNC: ±0.1mm
  - Mould: ±0.75mm
- No limitation in maximum hole dimension
- V-cut angle deviation: ±0.5°
- V-cut board thickness range: 0.6 to 3.2mm
- Minimum component mark character style: 0.15mm
- Minimum open window for pads: 0.01mm
- Solder mask colors: green, white, blue, matte black andgray

Material: FR-4

With HASL surface

Minimum line width/space: 0.1/0.1mm

With UL, SGS and RoHS marks

Minimum hole size: 0.2mm

PCB manufacture capability

Technology project

Manufacture capability

Type: aluminum/copper/iron base board

Surface finishing: HASL/immersion tin/goldplating/OSP/immersion silver

Layers count: 1 to 12 layers

Maximum dimensions: 1,100 x 480mm

Minimum dimensions: 5 x 5mm

Minimum trace and line spacing: 0.1mm

Warp and twist:

Copper thickness:

Minimum punching hole diameter:

The minimum punching square slot:

Board thickness:
- 0.4 to 3.2mm
- <1.0mm: 0.8 x 0.8mm
- 1.2 to 3.0mm: 1.0 x 1.0mm
Silk prints circuit tolerance: ±0.075mm
Outline tolerance:
- CNC: ±0.1mm
- Mould: ±0.75mm
No limitation in maximum hole dimension
V-cut angle deviation: ±0.5°
V-cut board thickness range: 0.6 to 3.2mm
Minimum component mark character style: 0.15mm
Minimum open window for pads: 0.01mm
Solder mask colors: green, white, blue, matte black andgray
