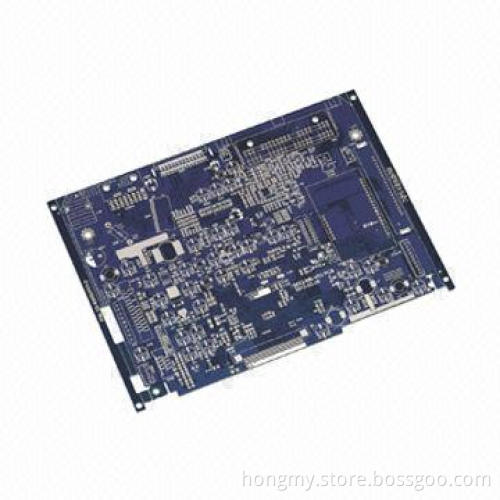

High-density Multi-layer PCB with Blue Solder Mask and 2oz Copper Thickness HASL Finish

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT, Western Union and PayPal

Product Description

Specifications:

Blue solder mask and two copper thicknesses

Board thickness: 1.6mm

Minimum hole size: 0.2mm

Minimum line width: 0.25mm

Minimum line spacing: 0.25mm

Layers: 1 to 16

Material: FR-4, aluminum base, Rogers, Taconic

Finish board thickness: 0.2 to 3.2mm (8 to 126 mils)

External copper thickness: 35 to 210um

Internal copper thickness: 17 to 140um

Copper plating hole: 18 to 40um

Minimum trace width and line spacing: 0.075/0.1mm( 3/4mils)

Minimum hole dimension (CNC): 0.20mm (8 mils)

Minimum hole dimension (punching): 0.9mm (35 mils)

Maximum panel dimension: 610 x 508mm

Hole position tolerance (CNC): ±0.075mm

Hole dimension tolerance (CNC):

Outline tolerance (CNC): ±0.125mm

Punching: ±0.15mm

Warp and twist: 0.70%

Minimum solder mask bridge: 0.0635mm

Distance between line to board edge:

Impedance control tolerance: ±10%

Test voltage: 10 to 300V

Solder mask types: green, yellow, red, white, blue, mattegreen, matte black

Surface finishing: HASL, immersion silver/gold, plate gold,gold finger

PTH: ±0.075mm

NPTH: ±0.05mm

Outline: 0.25mm

V-cut: 0.40mm
