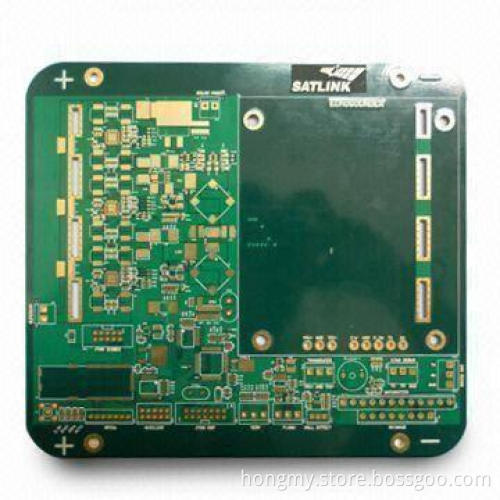

Multilayer PCB, Made of FR-4 Material, 2.0mm Finish Board Thickness and Immersion Gold

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C or Western Union, PayPal

Product Description

Specifications:

Outline tolerance:

CNS: 0.125mm
Punching: 0.15mm
Warp and twist: 0.70%
Solder mask bridge: 0.0635mm (minimum)
Minimum distance between lines to board bridge: 0.25 (outline)and 0.40mm (V-cut)
Impedance control tolerance: ± 10%
Test voltage: 10 to 300V
Solder mask types: green, yellow, red, white, blue, mattegreen, matte black and more
Surface finished: HASL, immersion gold, immersion silver,gold-plated, gold finger and OSP

Layers: 1 to 20

Materials: FR-4, CEM-1, aluminum, Rogers, Ta-conic, Greek andArlene

Finish board thickness: 0.2 to 3.2mm

External copper thickness: 35 to 210um

Internal copper thickness: 17 to 140um

Copper plating hole: 18 to 40um

Trace width and line spacing: 0.075/0.1mm (3/4 mils)

CNC hole diameter: 0.20mm (minimum)

Punching hole diameter: 0.9mm (35 mils) (minimum)

Panel size: 610 x 508mm (maximum)

Hole position tolerance: 0.075mm

Hole dimension tolerance:
