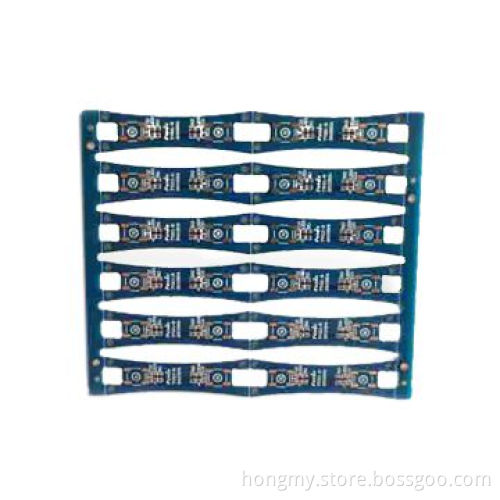

2-layer PCB with Small Size and Immersion Gold Surface Finish

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT, L/C, Western Union, PayPal

Product Description

Hongmy manufacture capability

Layers: 1 to 16

Materials: FR-4, CEM-1, aluminum, Rogers, Taconic, Getek, andArlon

Finish board thickness: 0.2 to 3.2mm

External copper thickness: 35 to 210μm

Internal copper thickness: 17 to 140μm

Copper plating hole: 18 to 40μm

Trace width and line spacing: 0.075/0.1mm (3 to 4 mils)

Minimum CNC hole diameter: 0.20mm

Minimum punching hole diameter: 0.9mm (35 mils)

Maximum panel dimension: 610 x 508mm

Hole position tolerance: 0.075mm

Hole dimensions tolerance:

Outline tolerance:

Warp and twist: 0.70%

Minimum solder mask bridge: 0.0635mm

Minimum distance between line to board bridge:

Impedance control tolerance: ±10%

Solder mask types: green, yellow, red, white, blue, mattegreen, matte black and more

Surface finish: HASL, immersion gold, immersion silver, platedgold, gold finger, and OSP

If you send us your Gerber files and PCB specifications, wewill quote for you within 12 hours

You will find that we are the right PCB supplier you want

PTH: 0.075mm

NPTH: 0.05mm

CNC: 0.125mm

Punching: 0.15mm

Outline: 0.25mm

V-cut: 0.40mm
