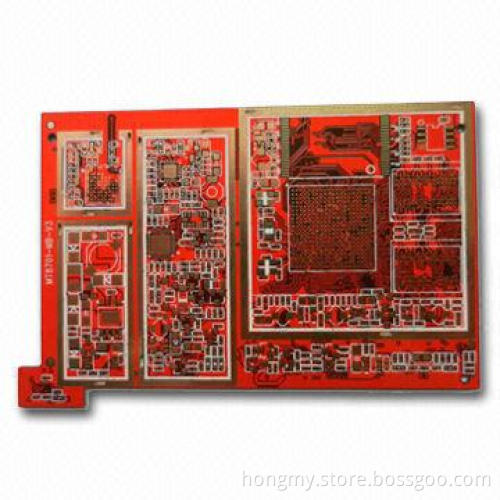

6-layered PCB with BGA and Impedance Control, 0.2 to 3.2mm Finished Board Thickness

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C at Sight, Western Union, PayPal

Product Description

Layer number: 6

Material 0.2mm finished board thickness: 1.0mm

Copper thickness: 1oz

Minimum trace width: 0.125mm

Minimum trace spacing: 0.1mm

Minimum hole diameter: 0.25mm

Surface finishing: immersion gold (15% GTL, 7% GBL)

CNC routing: computer

Materials: FR-4, CEM-1, aluminum, Rogers, Taconic, Getek and Arlon

Finished board thickness: 0.2 to 3.2mm

External copper thickness: 35 to 210um

Internal copper thickness: 17 to 140um

Copper plating hole: 18 to 40um

Trace width and line spacing: 0.075/0.1mm (3/4 mils)

Minimum CNC hole diameter: 0.20mm

Minimum punching hole diameter: 0.9mm (35 mils)

Maximum panel dimensions: 610 x 508mm

Hole position tolerance: 0.075mm

Hole dimension tolerance: (PTH) 0.075 and (NPTH) 0.05mm

Outline tolerance: (CNC) 0.125 and (punching) 0.15mm

Warp and twist: 0.70%

Minimum solder mask bridge: 0.0,635mm

Minimum distance between line to board bridge: (outline) 0.25 and (v-cut) 0.40mm

Impedance control tolerance: ±10%

Test voltages: 10 to 300V

Solder mask types: green, yellow, red, white, blue, matte green, matte black and more

Surface finishes: HASL, immersion gold, immersion silver, gold-plated, gold finger and OSP
