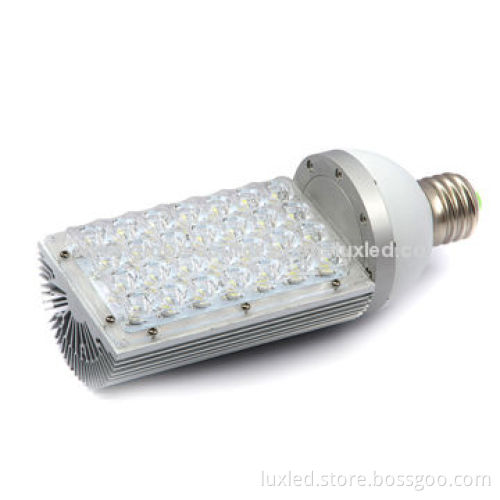

LED Streetlight Housing, E40 Base, 30W Power, IP65, 5-year Warranty

LED Streetlight Housing, E40 Base, 30W Power, IP65, 5-year Warranty

Get Latest Price

Payment Type:: T/T, L/C, Western Union, PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, PayPal

Product Description

Features:

More than 70% energy-saving
4 x 7 LEDs module design, convenient for maintenance
Original American Bridgelux LED or Cree/Philips Lumileds LED used
Universal input voltage: 85-265/277V AC/10-28V DC
Light control and time-phase dimming, saving further energy
High-quality power supply, reliable and stable
Automatically reduce current against over-heating temperature
Unique optical design and rectangular beam, suitable for roadway illumination
Lux is proud of its high-power LED streetlight series
High-power LED streetlights are new series of energy-saving products that utilize high-power LEDs as effective lighting source to traditional illumination
Based on the classic modular design our first generation LED streetlight, our upgraded generation improve the module design as 4 x 7 arrays
Although LEDs were deducted, but the light efficiency is much high and much more effective based on the dual lens design, this kind of design has really achieved a high-luminous efficiency, low-power consumption and excellent heat-dissipation characteristics, by scientific calculating, the whole lamp lighting efficiency can raise by 20%, temperature rising can be decreased by 20% and the energy-saving rate can be increased by 20%

Applications:

LED streetlight is available for main road, sidewalk, square, school park, garden, factories, residential places, villa and many other projector lighting places

Main technology index:

Model no: LX-SL28
Equivalent 70W high-pressure sodium lamp
LED light source: 28 x 1W Bridgelux
LED luminous efficiency: 107-122lm/W
Lamp total power: 30W
Power efficiency: 87%
Lamp rated luminous flux: >2,500lm
Lamp rated luminous efficiency: >95lm/W
Average illumination and effective area:
- 4m height: 13 x 5m ≥28 Lux
- 6m height: 20 x 8m ≥15 Lux
- 8m height: 26 x 10m ≥11 Lux
Color rendering index: >75Ra
Color temperature:
- Cool white: 5,700K
- Pure white: 4,500K
- Warm white: 3,000K
Beam angle: 140 x 75°
Light distribution curve (beam pattern)
Asymmetric (bat wing)/rectangular beam
Frequency range: 47-63Hz
Power factor: 0.96
Total harmonic distortion (THD): <15%
Storage temperature: -40-80℃
Working environment temperature: -40-50℃, 10-95% RH
Junction temperature (Tj): 60℃ ±10%

More than 70% energy-saving

4 x 7 LEDs module design, convenient for maintenance

Original American Bridgelux LED or Cree/Philips Lumileds LED used

Universal input voltage: 85-265/277V AC/10-28V DC

Light control and time-phase dimming, saving further energy

High-quality power supply, reliable and stable

Automatically reduce current against over-heating temperature

Unique optical design and rectangular beam, suitable for roadway illumination

Lux is proud of its high-power LED streetlight series

High-power LED streetlights are new series of energy-saving products that utilize high-power LEDs as effective lighting source to traditional illumination

Based on the classic modular design our first generation LED streetlight, our upgraded generation improve the module design as 4 x 7 arrays

Although LEDs were deducted, but the light efficiency is much high and much more effective based on the dual lens design, this kind of design has really achieved a high-luminous efficiency, low-power consumption and excellent heat-dissipation characteristics, by scientific calculating, the whole lamp lighting efficiency can raise by 20%, temperature rising can be decreased by 20% and the energy-saving rate can be increased by 20%

LED streetlight is available for main road, sidewalk, square, school park, garden, factories, residential places, villa and many other projector lighting places

Model no: LX-SL28

Equivalent 70W high-pressure sodium lamp

LED light source: 28 x 1W Bridgelux

LED luminous efficiency: 107-122lm/W

Lamp total power: 30W

Power efficiency: 87%

Lamp rated luminous flux: >2,500lm

Lamp rated luminous efficiency: >95lm/W

Average illumination and effective area:
