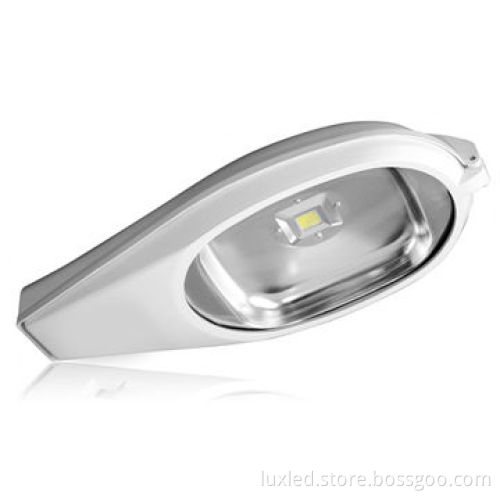

30W LED street light fixture, IP65 with CE/RoHS
  • 30W LED street light fixture, IP65 with CE/RoHS
  • 30W LED street light fixture, IP65 with CE/RoHS
  • 30W LED street light fixture, IP65 with CE/RoHS
30W LED street light fixture, IP65 with CE/RoHS
30W LED street light fixture, IP65 with CE/RoHS
30W LED street light fixture, IP65 with CE/RoHS

30W LED street light fixture, IP65 with CE/RoHS

Payment Type:
T/T, L/C, Western Union or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union or PayPal
Product Description
Product Description
  • Features:
    • Product name: LED street light 530 series 20W
    • Adopt super brightness multi-chip LED lighting source, encapsulation by ourselves, long lifespan, energy saving, environment friendly, high efficiency, no strobe, no ghosting, no UV, IR
    • LUX series LED street light integrate LED lighting source and the cover of the light, the advantages are no needing extra cover, the volume is small and the weight of the body is light. Which make the LED light perfect
    • The lighting source of the LED high bay is using super bright big size LED chip
    • It’ s single LED chip with top quality which lumen is up to 120lm/W
    • Using high efficiency PC lens and sand blast oxidation light cover which can solve the problems such as light loss and color shading
    • It can assure the uniformity of flux and color
    • Using high efficiency thermal conductivity silicon, it’s assured the heat sink of the light, the temperature of the junction is not pass 65 ℃, which is effective controlled the light degradation, the lifespan for the led light is over 30000 hours
    • The range for the input voltage is wide. Which make the LED high bay are available for the global
    • Unique protection circuit and exact constant current system assure the abilities such as anti-interference and stability of the light.
    • Our LED driver are approved CE/CB/EMC/GS/TUV/UL, can be available for everywhere
    • Available for solar DC10V-28V to realize the secondary energy saving system
  • Applications:
    • LED street light is available for main road, sidewalk, square, school, park, garden, factory, residential places, villa and many other projector lighting places
  • LED work voltages: 15-18V
  • Related color temperatures (CCT):
    • Cool white: 6000-7000K
    • Pure white: 4500 – 5500K
    • Warm white: 3000 – 4000K/2700-2900K
  • Other available colors: red, yellow, blue & green amber
  • Color rendering index (CRI):
    • CW/PW: Ra≥80
    • WW :Ra≥70
  • Beam angle: 130° x 65°
  • Distribution of the light: LED+ secondary distribution of the light reflector
  • The curve of light distribution: Asymmetric (Bat Wing)/rectangular beam
  • Working temperatures: -40  ~ 50 ºC
  • Working humidity range: -10 ~ 90%RH
  • Storage temperatures: -25~65 ºC
  • Material for light: Aluminum
  • Case colors available: gray, silver, white available
  • Lifespan for LED lighting source: > 50,000 hours
  • IP Rating: IP65
  • Size for pole diameter: ¢50mm
  • Net weight: 3.2Kg
  • Gross weight: 3.9Kg
  • Package size (mm):  580*280*200 /1pc
  • Product name: LED street light 530 series 20W
  • Adopt super brightness multi-chip LED lighting source, encapsulation by ourselves, long lifespan, energy saving, environment friendly, high efficiency, no strobe, no ghosting, no UV, IR
  • LUX series LED street light integrate LED lighting source and the cover of the light, the advantages are no needing extra cover, the volume is small and the weight of the body is light. Which make the LED light perfect
  • The lighting source of the LED high bay is using super bright big size LED chip
  • It’ s single LED chip with top quality which lumen is up to 120lm/W
  • Using high efficiency PC lens and sand blast oxidation light cover which can solve the problems such as light loss and color shading
  • It can assure the uniformity of flux and color
  • Using high efficiency thermal conductivity silicon, it’s assured the heat sink of the light, the temperature of the junction is not pass 65 ℃, which is effective controlled the light degradation, the lifespan for the led light is over 30000 hours
  • The range for the input voltage is wide. Which make the LED high bay are available for the global
  • Unique protection circuit and exact constant current system assure the abilities such as anti-interference and stability of the light.
  • Our LED driver are approved CE/CB/EMC/GS/TUV/UL, can be available for everywhere
  • Available for solar DC10V-28V to realize the secondary energy saving system
  • LED street light is available for main road, sidewalk, square, school, park, garden, factory, residential places, villa and many other projector lighting places
  • Cool white: 6000-7000K
  • Pure white: 4500 – 5500K
  • Warm white: 3000 – 4000K/2700-2900K
  • CW/PW: Ra≥80
  • WW :Ra≥70
