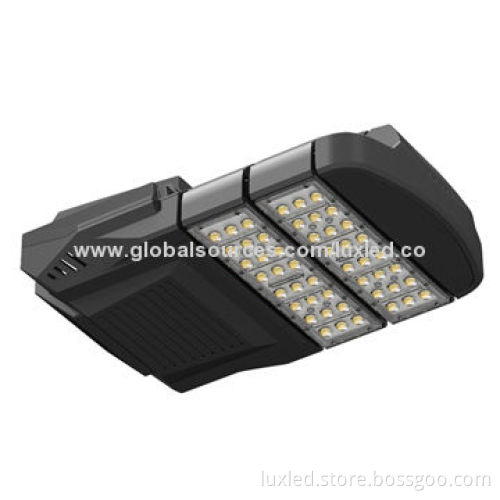

55W LED Street Light Module with USA Cree LED and Meanwell Driver

55W LED Street Light Module with USA Cree LED and Meanwell Driver

Get Latest Price

Payment Type:: T/T, L/C, Western Union, PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T,L/C,Western Union,PayPal

Product Description

Features:

More than 70% energy-saving
3x8 LED module design, convenient for maintenance
Original American Cree LED or Philips Lumileds LED used
Universal input voltage: 85-265/277V AC/10-28V DC
Light control and time-phase dimming, saving further energy
High-quality power supply, reliable and stable
Automatically reduce current against over-heating temperature
Unique optical design and rectangular beam, suitable for roadway illumination

Applications:

LED street light is available for main road, sidewalk, square, schools, park, garden, factory, residential places, villa and many other projector lighting places

Specifications:

Model number: LX-SL48
Equivalent: 150W high-pressure sodium lamp
LED light source: 48 × 1W Cree LED/Philips Lumileds
LED luminous efficiency: 107-122lm/W
Lamp total power: 55W
Power efficiency: 88%
Lamp rated luminous flux: >5,400lm
Lamp rated luminous efficiency: >95lm/W
Average illumination and effective area:
- 6m height: 20×8m, ≥36 Lux
- 8m height: 26×10m, ≥24 Lux
- 10m height: 33×13m, ≥17 Lux
Color rendering index: >75Ra
Color temperature:
- Cool white: 5,700K
- Pure white: 4,500K
- Warm white: 3,000K
Beam angle: 140 x 75°
Light distribution curve (beam pattern): asymmetric (bat wing)/rectangular beam
Frequency range: 47-63Hz
Power factor: 0.96
Total harmonic distortion: <15%
Storage temperature: -40 to +80℃
Working environment: -40 to +50℃, 10-95% RH
Junction temperature: 60℃ ±10% (ta = 25℃)
Light body and lampshade materials: aluminum alloy and ASA/PC
Working lifetime: >50,000 hours
IP rating: IP66
Net weight: 5.4kg
Gross weight: 6.5kg
Product size: 489×315×204mm
Package size: 555×370×280mm (1 piece)
