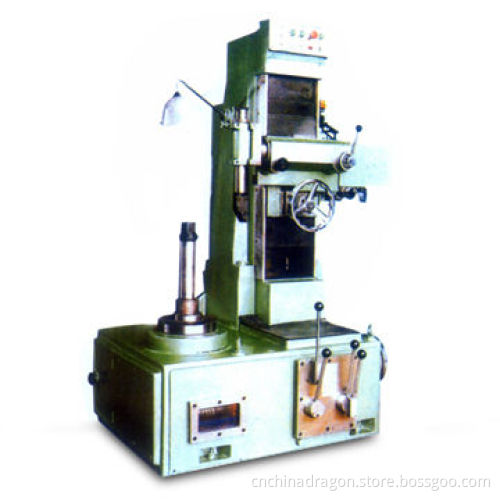

Brake Drum Boring Machine with 650mm Maximum Diameter and 350mm Tool-post Vertical Travel

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Maximum boring diameter: 650mm

Range of boring diameter: 200 to 650mm

Vertical travel of tool-post: 350mm

Spindle speed: 25, 45, and 80r/min

Spindle feed: 0.16, 0.25, and 0.40mm/r

Rapid traverse of tool-post: 490mm/min

Motor power: 1.1kW

Overall dimensions: 1,140 x 900 x 1,600mm

Weight: 960kg

Special accessories: fixture for brake shoe
