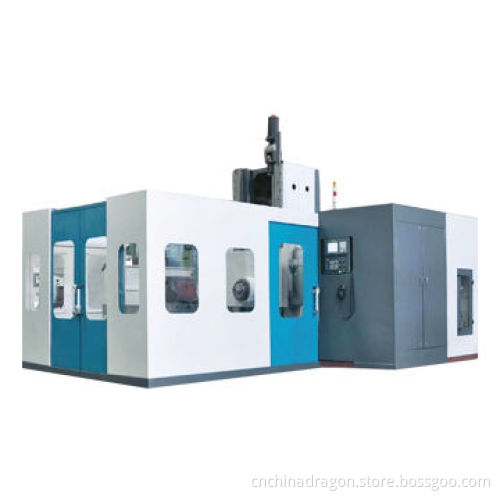

CNC Horizontal Machining Center

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

X travel: 1,250mm

Y travel: 1,200mm

Z travel: 1,100mm

Spindle nose to table center: 300 to 1,400mm

Spindle center to table face: 0 to 1,200mm

Working manner: NC 0.001° (optional: NC5°)

Table size: 1200 x 1,200mm/mm

T slot (wide x number x space): 22 x 7 x 160mm

Maximum loading: 5,000kg

Spindle motor: 18.5/22kW

Maximum speed: 3,000rpm

Spindle taper: BT50

Spindle diameter x travel: Φ110x500mm

Rapid feed: 12m/minute

Cutting speed: 1 to 5,000mm/minute

Positioning accuracy: 0.025mm

Repeatability positioning: 0.012mm

Table indexing accuracy: 20 inches (+_5 inch)

Table repeatability accuracy: 10 inches (+_1 1/2 inch)

Boring bar movement straightness: 0.01/300mm

Tool shank: BT50

Tool magazine capacity: 40 (optional60, 80)

Maximum tool: Φ125 x 20 x 400mm

Machine weight: 21,000kg

Power requirement: 50kVA

Package dimension: Separating package

Controller: FANUC, OI-MC (standard), optional: Siemens, Mitsubishi and HD-500
