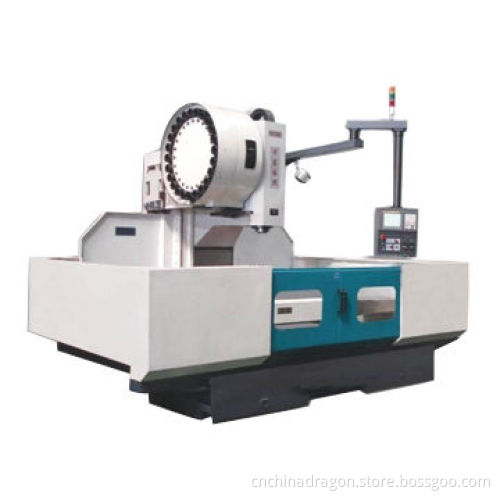

CNC Machine with 24T Tool Magazine Capacity and 45kVA Power RequirementNew

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Moving axis:

Spindle nose to table: 250 to 900mm (belt), 200 to 850mm(coupling)

Table size: 1,700 x 750mm

T-slot (wide x number x space): 18 x 5 x 125mm

Maximum load capacity: 2,000kg

Spindle motor: 11/15kW

Spindle speed: 60 to 6,000rpm (optional: 60 to 5,000mm)

Spindle taper: BT50

Spindle connect to motor: belt, direct coupling

X, Y, Z servo motor: 4/7/4kW

X, Y, Z servo motor torque: 22/30/22Nm

Rapid speed: 20/20/20m/minute

Cutting federate: 1 to 5,000mm/minute

Hand federate: 0 to 2,000mm/minute

Positioning accuracy: 0.016mm

Repeatability: 0.008mm

ATC:

Machine:

X-travel: 1,500mm

Y-travel: 800mm

Z-travel: 650mm

Change type: arm type

Tool magazine capacity: 24T

Maximum tool (diameter x weight x length): ¦127mm x 15kgx 300mm

Change time: 5 seconds

Machine weight: 16,000kg

Power requirement: 45kVA

Controller: FANUC, Siemens, Mitsubishi, HD-500

Package dimensions: 4,470 x 3,240 x 3,200mm
