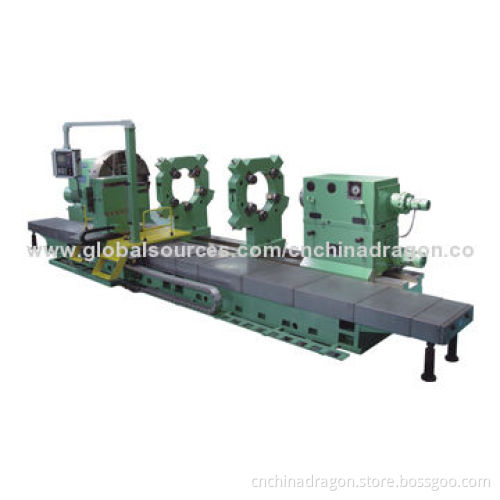

CNC Roll Turning Lathe, 1,800mm Swing Over-bed
  • CNC Roll Turning Lathe, 1,800mm Swing Over-bed
CNC Roll Turning Lathe, 1,800mm Swing Over-bed

CNC Roll Turning Lathe, 1,800mm Swing Over-bed

Get Latest Price
Payment Type:
L/C
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: L/C
Product Description
Product Description
  • Description:
    • CNC heavy-duty lathe: CCK61180, 1,800 × 5,000mm
    • Swing over-bed: 1,800mm
    • Swing over-carriage: 1450mm
    • Width of bed with 4 guide ways: 2,050mm
    • Distance between centers: 5,000mm
    • Supports weight between centers: 40-ton
    • Spindle taper hole: 120mm, 1:7
    • Spindle speed: stepless, 0.8 to 160rpm
    • Torque of faceplate: 100kN.m
    • Special tool supports shown as drawing in page 2:2 positioning
    • Maximum cutting force of tool post: 80kN
    • Size of tool holder: 70×70mm
    • Travel of X-axis, Z-axis: 750, 5,000mm
    • Feed speed of X, Z-axis: 1 to 500mm/minute
    • Rapid traverse of X, Z-axis: 4,000mm/minute
    • Ball screw of X-axis (Ф): Ø 50×10
    • Rack and gearbox of Z-axis
    • Linear encoder for Z-axis and Z-axis made by Heidenhain of Germany
    • Diameter of tailstock sleeve: 380mm
    • Taper hole of tailstock sleeve: 120mm, 1:7
    • Movement of tailstock: 300mm
    • Traverse speed of motorized tailstock: 3,000mm/minute
    • Traverse speed of sleeve in tailstock: 50mm/minute
    • Power of main motor: DC 90kW
    • Torque of X and Z-axis servomotor: 41Nm
    • Control system: Siemens 802Dsl
    • Bedway: hardened and ground
  • Electrical power:
    • Accessories:
      • Four jaws chuck, diameter of 1,600mm
      • Steady rest, range from 400 to 750mm
    • Working light:
      • Measuring display for centering force in tailstock
      • Constant temperature device of lubrication
      • Foundation bolts and leveling pads
    • Dead center/special tools:
      • Optional attachment
      • Static hydraulic steady, range 600–900mm
      • Supporter with rollers, range 600 to 1,200mm
      • Conveyor, length 5 meters
  • CNC heavy-duty lathe: CCK61180, 1,800 × 5,000mm
  • Swing over-bed: 1,800mm
  • Swing over-carriage: 1450mm
  • Width of bed with 4 guide ways: 2,050mm
  • Distance between centers: 5,000mm
  • Supports weight between centers: 40-ton
  • Spindle taper hole: 120mm, 1:7
  • Spindle speed: stepless, 0.8 to 160rpm
  • Torque of faceplate: 100kN.m
  • Special tool supports shown as drawing in page 2:2 positioning
  • Maximum cutting force of tool post: 80kN
  • Size of tool holder: 70×70mm
  • Travel of X-axis, Z-axis: 750, 5,000mm
  • Feed speed of X, Z-axis: 1 to 500mm/minute
  • Rapid traverse of X, Z-axis: 4,000mm/minute
  • Ball screw of X-axis (Ф): Ø 50×10
  • Rack and gearbox of Z-axis
  • Linear encoder for Z-axis and Z-axis made by Heidenhain of Germany
  • Diameter of tailstock sleeve: 380mm
  • Taper hole of tailstock sleeve: 120mm, 1:7
  • Movement of tailstock: 300mm
  • Traverse speed of motorized tailstock: 3,000mm/minute
  • Traverse speed of sleeve in tailstock: 50mm/minute
  • Power of main motor: DC 90kW
  • Torque of X and Z-axis servomotor: 41Nm
  • Control system: Siemens 802Dsl
  • Bedway: hardened and ground
  • Accessories:
    • Four jaws chuck, diameter of 1,600mm
    • Steady rest, range from 400 to 750mm
  • Working light:
    • Measuring display for centering force in tailstock
    • Constant temperature device of lubrication
    • Foundation bolts and leveling pads
  • Dead center/special tools:
    • Optional attachment
    • Static hydraulic steady, range 600–900mm
    • Supporter with rollers, range 600 to 1,200mm
    • Conveyor, length 5 meters
  • Four jaws chuck, diameter of 1,600mm
  • Steady rest, range from 400 to 750mm
  • Measuring display for centering force in tailstock
  • Constant temperature device of lubrication
  • Foundation bolts and leveling pads
  • Optional attachment
  • Static hydraulic steady, range 600–900mm
  • Supporter with rollers, range 600 to 1,200mm
  • Conveyor, length 5 meters
