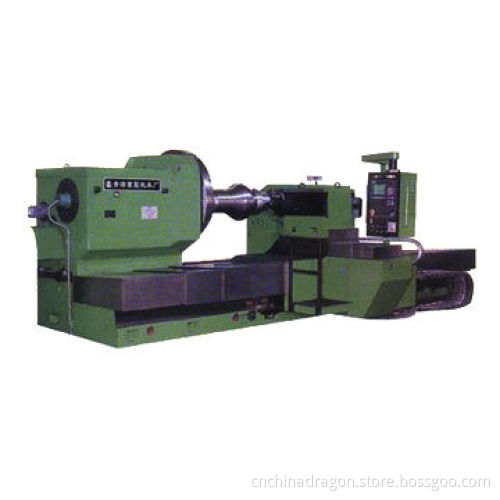

CNC Roll turning lathe
  • CNC Roll turning lathe
CNC Roll turning lathe

CNC Roll turning lathe

Get Latest Price
Payment Type:
L/C or TT
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: L/C or TT
Product Description
Product Description
  • Max. workpiece length: 5,000mm
  • The max swing diameter over toolpost:φ1250mm
  • The machine bed width:1,850mm
  • The max loading between centers: 25t
  • Bearing diameter of spindle: φ320mm
  • The spindle taper short taper flange type: 1:4  φ100mm
  • Spindle speed range:1-250r/min
  • Fou jaw chuck (independent):φ1250mm
  • Max torque of chuck: 70KN.m
  • Max cutting force of toolpost: 100K
  • Max transversal travel of slide: 620mm
  • Cutter blade travel: 300mm
  • Rapid moving speed of toolpost:longitudinal 4,000mm/min
  • Transversal 4,000mm/min
  • Center sleeve diameter: 320mm
  • Max travel of center sleeve: 300mm
  • Tailstock sleeve moving speed 50mm/min
  • Spindle taper of tailstock short taper flange type: 1:4  φ100mm
  • Rapid speed of tailstock: 2,000mm/min
  • Main motor power: 75kw
