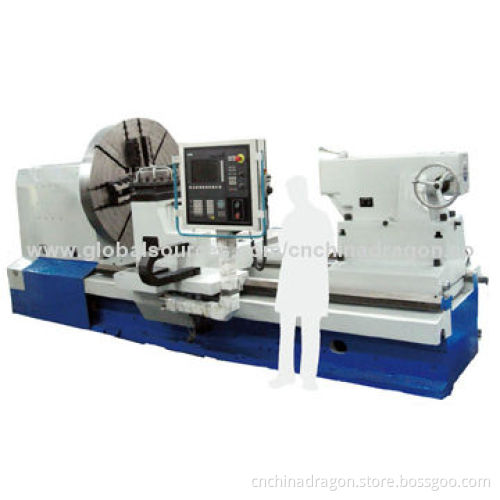

CNC Roll Turning Lathe, 280mm Diameter of Tailstock Sleeve, 1,600mm Width of Bed

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C or T/T

Product Description

Maximum swing over bed: Ф1,000mm

Maximum length of work-piece: 5,000mm

Maximum supporting weight between two centers: 18,000kg

Width of bed: 1,600mm

Spindle bore: Ф280mm

Metric no: 140/ISO A2-15

Range of spindle speed: automatic 2 steps, 2-200rpm

Power of main motor: 55kW

Torque of servo motor in X-axis: 41Nm

Torque of servo motor in Z-axis: 41Nm

Size of tool holder: 50x50mm

Feed speed of X-axis:1 to 4,000mm/minute

Feed speed of Z-axis: 1 to 4,000mm/minute

Rapid traverse of X, Z-axis X: 3,000mm/minute, Z: 5,000mm/minute

Diameter of tailstock sleeve: 280mm

Taper hole of tailstock sleeve: 100,1:4

Maximum movement of tailstock: 300mm
