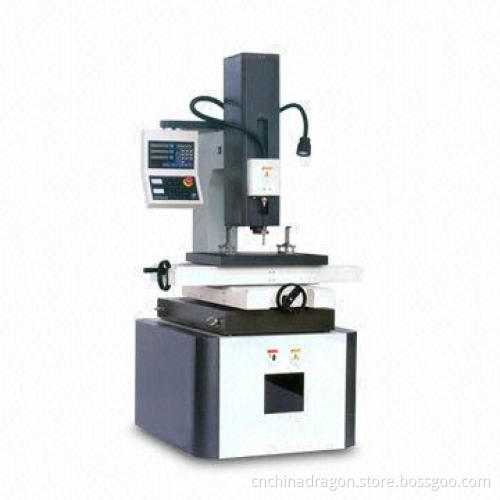

High-speed Small Hole Drilling Machine with Spindle Travel of 450mm and 500 x 630cm X to Y

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

Electrode diameter (¦): 0.5 to 4.0mm

Spindle travel: 450mm

Z-axis servo travel: 500mm

C-axis revolution: 220

Work table size: 600 x 860mm

X-Y: 500 x 630mm

The maximum space between guide and worktable: 500mm

Maximum working current: 25A

Maximum power supply: 2.5kW/380V

Working flume capacity: 50L

Maximum pump pressure: 7MPa

Mainframe exterior size: 1,950 x 1,500 x 1,600mm

Machine weight: 2,500kg
