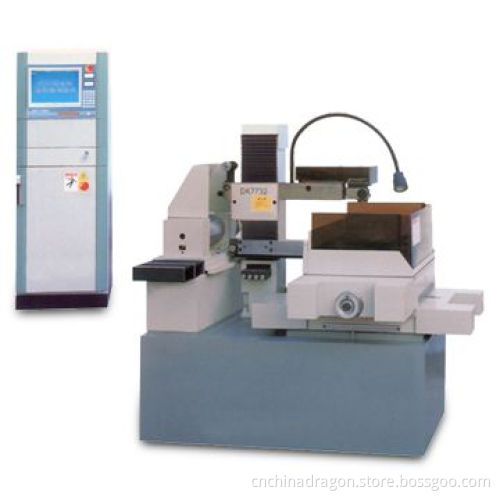

EDM with 400kg Load Capacity of Table and 1,700kg Weight

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Table size (L x W): 635 x 415mm

Work table travel (X x Y): 320 x 400mm

Maximum workpiece thickness: 300

Maximum taper angle/plate thickness: ±3°/100mm

Maximum machining speed: 120mm/min

Machining accuracy: d0.015 octagon

Machining accuracy: d0.04 taper

Maximum working current: 6A

Roughness, Ra (once cutting): d2.5¼m

Roughness, Ra (twice cutting): d1.5¼m

Wire diameter: $0.15 to $0.2mm

Wire traveling speed: 5 or 11mm/min

Load of table: 400kg

Work fluid: saponification/liquid

Working reservoir capacity: 56L

Power supply: 3N - 380V/50Hz

Power consumption: 3kVA

Wire guide frame: adjustable

Machine dimension (L x W x H): 1,450 x 1,000 x 1,550mm

Package dimension (L x W x H): 1,830 x 1,400 x 1m800mm

Machine weight: 1,700kg
