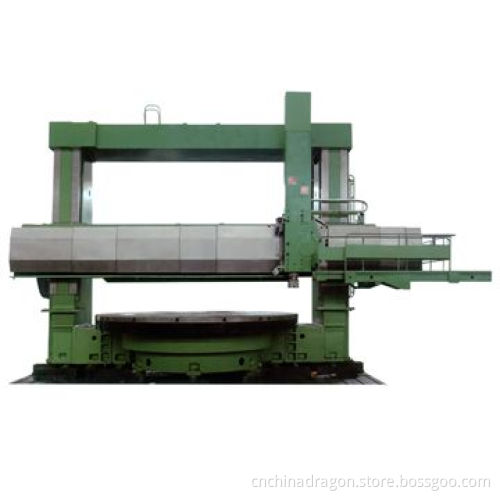

Double Column Movable Vertical Turning Machine with 4,000mm/min Toolhead Rapid Movement

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Maximum turning diameter: 10,000mm

Maximum turning height: 4,000/5,000mm

Maximum weight of workpiece: 100/160/250T

Maximum table diameter: $7,200/8,000mm

Speed range of the table: 0.25-25rpm, 0.155-15.5rpm

Maximum table torque: 400/530/630kN.m

Horizontal travel of the toolhead: 5,400mm

Maximum travel of the ram: 2,500/3,150mm

Rapid movement of the toolhead: 4,000mm/min

Maximum cutting force of the right toolhead: 100kN

Maximum cutting force of the left toolhead: 100kN

Section of the toolhead and ram: 400/400mm

Main motor power: 125/143kW
