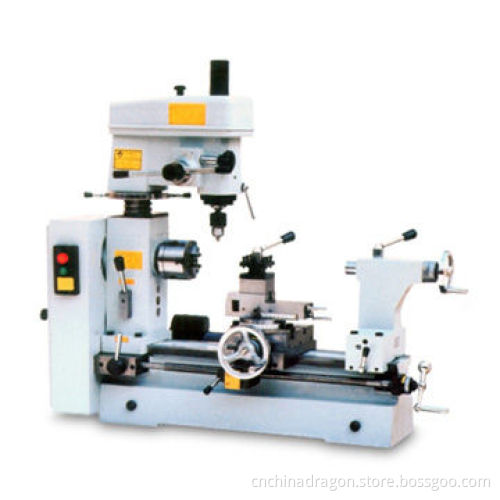

Multipurpose Lathe Machine with 0.2 to 3mm Metric Thread Range and 20mm Spindle Hole

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Swing over bed: φ420mm

Distance between centers: 400mm

Maximum longitudinal travel: 380mm

Maximum cross travel: 120mm

Taper of spindle: MT3

Spindle hole: φ20mm

Range of spindle speed: 160 to 1,360rpm

Barrel travel: 70mm

Taper of center: MT3

Metric thread range: 0.2 to 3mm

Inch thread range: 8 to 120TPI

Longitudinal range of automatic feeding: 0.05 to 0.175mm

Max. drilling capacity: φ15mm

Worktable size (L x W): 200 x 150mm²

Maximum end mill: φ20mm

Maximum face mill: φ63mm

Spindle travel: 85mm

Steps of spindle speed: 14

Swivel angle of headstock: ±360°

Motor power: 0.55kW

Voltage/frequency: as customer's requirement

Motor speed: 1,400rpm

Overall size: 970 x 580 x 965mm

Packing size: 1,032 x 580 x 1,100mm

Net/gross weight: 180/215kg

Loading quantity: 40pcs/20ft container
