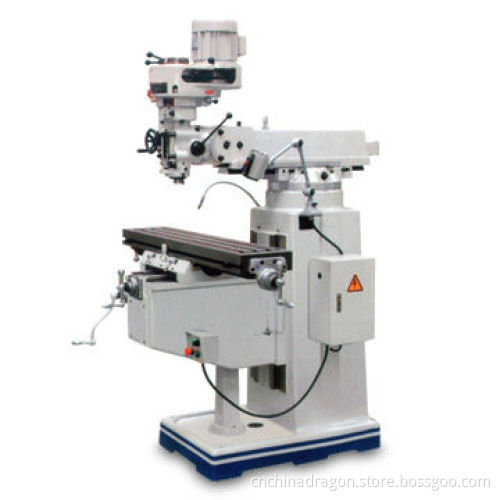

Universal Radial Milling Machine, Long Travel 950mm, Cross Travel 400mm
  • Universal Radial Milling Machine, Long Travel 950mm, Cross Travel 400mm
Universal Radial Milling Machine, Long Travel 950mm, Cross Travel 400mm

Universal Radial Milling Machine, Long Travel 950mm, Cross Travel 400mm

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Table size: 254 x 1,370(10 x 54)
  • Long travel: 950mm
  • Cross travel: 400mm
  • Vertrical travel: 420mm
  • T-slot No. and size: 3 x 16mm
  • Ram travel: 470mm
  • Distance from spindle nose to table surface: 0-405mm
  • Spindle hole taper
    • Standard: R8
    • Optional: ISO40
  • Spindle travel: 127mm
  • Spindle speed:
    • Standard: 16speeds(shiftgrade) 50Hz: 65-4500 60hz:80-5440
  • Optiond((variable): 065-4500
  • Auto. quill feed:
    • Three steps:0.04(0.0015)/0.08(0.003)/0.15(0.006)mm/revolution
  • Spindle motor: 2.25kw/3hp
  • Head swivel: 90°
  • Head tilting: 45°
  • Dimension of package:
    • One miller per case
    • Two miller per case
    • Three miller per case
  • G.W/set: 1,420g
  • Standard: R8
  • Optional: ISO40
  • Standard: 16speeds(shiftgrade) 50Hz: 65-4500 60hz:80-5440
  • Three steps:0.04(0.0015)/0.08(0.003)/0.15(0.006)mm/revolution
  • One miller per case
  • Two miller per case
  • Three miller per case
