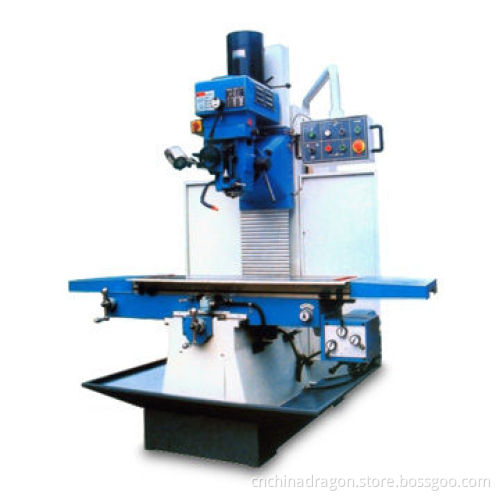

Vertical Milling Machine in Bed Type, with 1,000 x 400 x 460mm Table Travel

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Table taper: ISO40

Spindle travel: 120mm

Swivel angle milling head: ±45°

Range of spindle speed: 75 to 3,500rpm (10 steps)

Distance from spindle to table: 120 to 580mm

Distance from spindle to column: 440mm

Speed of up/down milling head: 2m/min

Table size: 1,250 x 360mm

Table travel (X/Y/Z): 1,000 x 400 x 460mm

T-slot: (number - width - distance) 3/18/80mm

Main motor power: 5.5mm (kW)

Overall dimension: 2,220 x 1,830 x 2,340mm

Weight: 2,350/2,550kg
