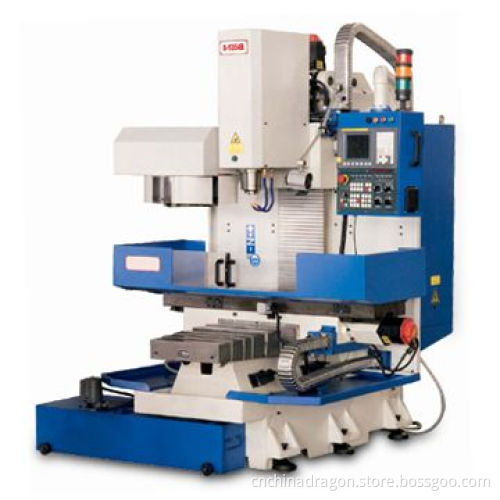

Milling Machine with 1,500kg Loading Capacity and 1,854 x 610mm Table Size

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Table size (L x W): 1,854 x 610mm

Table loading capacity: 1,500kg

T-slots: 18 x 5mm

X-axis: 1,500mm

Y-axis: 740mm

Z-axis: 700mm

Maximum move speed: 1000mm

Maximum feed speed: 4000mm

Spindle speed: 40 to 6,000rpm/min

Spindle nose: BT40/BT50

Spindle mote: 7.5HP

X/Y/Z servo motor: 2kW

Spindle quill diameter: ¦150/160mm

Distance from spindle to column surface: 80 to 780mm

Ball screws

X-axis: ¦40 x 10mm, P4 double nuts

Y-axis: ¦40 x 10mm, P4 double nuts

Z-axis: ¦40 x 10mm, P4 double nuts

Positioning accuracy: ±0.015mm

Repeatability: ±0.008mm

Servi-closure guard: 2,900 x 3,150 x 2,900mm

Servi-closure guard: 6,000mm
