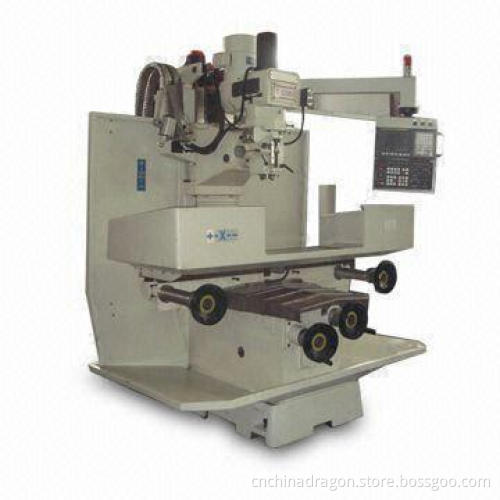

CNC Universal Milling Machine with 1.2kW/3,000rpm Main Motor Power

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Table:

Table size: 1,524 x 381mm
Table loading: 300kg
T-slot: 18 x 3W/mm

Travel:

X axis travel: 1,000mm
Y axis travel: 500mm
Z axis travel: 550mm

Spindle:

Spindle speed for no-shift milling head: 60 to 480/480 to 3,600rpm/min
Spindle speed for Yaskawa inverter milling head: 0 to 480/0 to 5,000rpm/min
Spindle taper: NT40
Spindle: 5HP
Outward diameter of quill: 105mm
Distance from spindle to table: 50mm
Distance from spindle center to column: 470mm

Ball screw:

X axis: φ32 x 5 x P4mm
Y axis: φ32 x 5 x P4mm
Z axis: φ32 x 5 x P4mm
Main motor power: 1.2kW/3,000rpm
Package dimension: 1,910 x 1,900 x 2,200mm

Standard accessories:

Draw bar
Tools box with tools
Work light
Splashing guard worktable safeguard
Coolant system
Auto timing lubrication system
Chip plate

Optional accessories:

Pneumatical draw bar
Combined press board
Cutter long measure device
Edge finders

Table size: 1,524 x 381mm

Table loading: 300kg

T-slot: 18 x 3W/mm

X axis travel: 1,000mm

Y axis travel: 500mm

Z axis travel: 550mm

Spindle speed for no-shift milling head: 60 to 480/480 to 3,600rpm/min

Spindle speed for Yaskawa inverter milling head: 0 to 480/0 to 5,000rpm/min

Spindle taper: NT40

Spindle: 5HP

Outward diameter of quill: 105mm

Distance from spindle to table: 50mm

Distance from spindle center to column: 470mm

X axis: φ32 x 5 x P4mm

Y axis: φ32 x 5 x P4mm

Z axis: φ32 x 5 x P4mm

Main motor power: 1.2kW/3,000rpm

Package dimension: 1,910 x 1,900 x 2,200mm

Draw bar

Tools box with tools

Work light

Splashing guard worktable safeguard

Coolant system

Auto timing lubrication system

Chip plate

Pneumatical draw bar

Combined press board

Cutter long measure device

Edge finders
