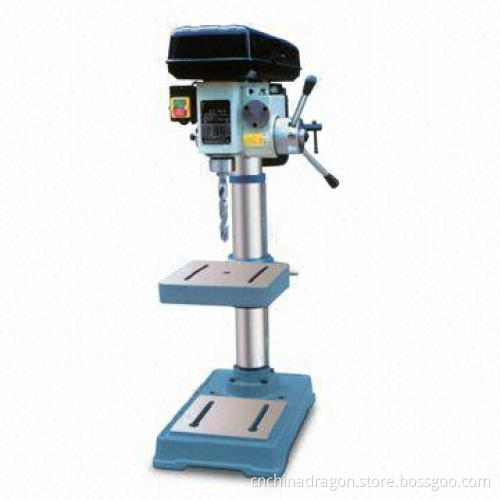

Vertical Drilling Machine with 90mm Diameter of Column

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Max drilling capacity: 16mm

Spindle travel: 105 mm

Diameter of column: 90 mm

Taper of spindle hole: MT2

Spindle speed: 290, 400, 520, 860, 1,650, 2,000R/min

Micro feed of spindle: 0.10, 0.14, 0.17, and 0.25 mm/r

Distance from spindle axis to column surface: 220 mm

Worktable size: 320/280 x270mm

Worktable elevation: 400mm

Dimension of base table: 245 x245mm

Distance from spindle nose to worktable: 430mm

Distance from spindle nose to base table: 620mm

Rotating angle of worktable around column: 360º

Motor power: 50Hz, 4-pole, 750W, 380V

Outline dimension: 660 x 380 x 1,060mm

NW/GW: 120/140kg

Ship measuremnet: 77 x 46 x 116cm

Loading amount: 24pcs/20' container
