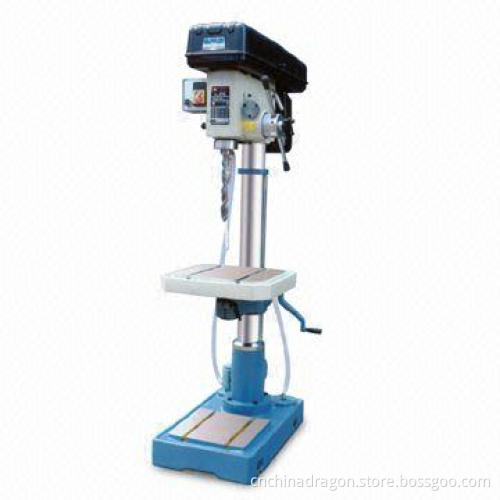

Vertical Drilling Machine with Up to 2,160r/min. Spindle Speed
  • Vertical Drilling Machine with Up to 2,160r/min. Spindle Speed
Vertical Drilling Machine with Up to 2,160r/min. Spindle Speed

Vertical Drilling Machine with Up to 2,160r/min. Spindle Speed

Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Max drilling capacity: 25mm
  • Spindle travel: 130mm
  • Diameter of column: 102mm
  • Taper of spindle hole: MT3
  • Spindle speeds: 230, 360, 500, 900, 1,650, 2,160r/min.
  • Micro feed of spindle: 0.10, 0.16 and 0.25mm/r
  • Distance from spindle axis to column surface: 230mm
  • Worktable size:
    • Round: Ø420
    • Square: 340 x 360
  • Worktable elevation: 590
  • Diamension of base table: 300 x 320mm
  • Distance from spindle nose to worktable: 100 - 600mm
  • Distance from spindle nose to base table: 860 - 990mm
  • Rotating angle of worktable around column: 360°
  • Motor power: 50Hz, 4-poles, 1.5KW, 380V
  • Outline dimension: 91 x 58 x 180mm
  • N.W/G.W: 200kg, 180kg
  • Ship measurement: 91 x 58 x 185mm
  • Loading amount: 24pcs/20'container
  • Round: Ø420
  • Square: 340 x 360
