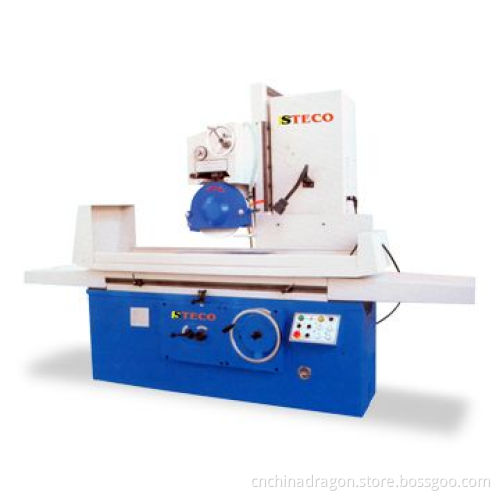

Surface Grinder Machine with Maximum Wheelhead Cross Travel of 370mm

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Table size: 320 x 1,000mm

Maximum distance from spindle axis to table surface: 575mm

Maximum table longitudinal travel: 1,100mm

Maximum wheelhead cross travel: 370mm

Maximum wheelhead vertical travel: 400mm

Feed on vertical feed handwheel

Per grad: 0.005mm

Per rev: 0.5mm

Wheel size: 350 x 40 x 127mm

Spindle speed: 1,440rpm

Motors total power: 9.17kW

Wheel spindle motor: 5.5kW

Oil pump motor: 3kW

Parallelism of machining surface to reference surface: 0.005/300mm

Surface roughness: Ra: 0.63m

Net/gross weight: 3,000 x 3,500kg

Packing dimensions: 230 x 170 x 250cm
