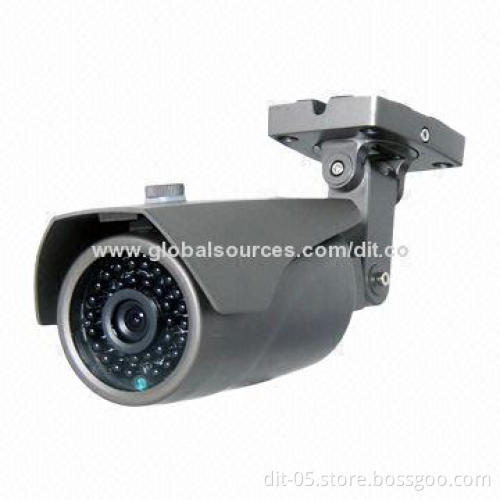

1/3-inch Sony Low-illumination EFFIO CCD Camera and DSP, 700TVL, 36 Pieces Lens

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Letter of Credit (LC, L/C)

Product Description

Specifications:

CCD sensor 1/3-inch Sony low-illumination EFFIO CCD andDSP
Lens amount standard f = 6mm F1.6 Fixed Lens (option: 3.6/8mmF1.6)
Lens type fixed lens (not c/cs amount)
Effective pixels:
- NTSC (H x V): 976 x 494 pixels (480K pixels)
- PAL (H x V): 976 x 582 pixels (570K pixels)
Signal systems: PAL/NTSC
Synchronization external/Internal
Shutter speeds:
- PAL: 1/50 to 1/100,000/seconds
- NTSC: 1/60 to 1/100,000/seconds
S/N more than 50dB (AGC OFF)
Horizontal resolution 700TVL (color), 780(B/W)
Low-illumination color: 0.3 Lux (F1.2, 50IRE, AGC-on), D/N: 0Lux (F1.2, 50IRE, AGC-on, IR LEDs on)
D/N D/N auto converter
D/N switching method D/N controlled by CDS
D/N switching time: 000 to 255
DWS dual windows structure
DNR 2DNR
MD yes
White balance AWB, ATW, MWB
Mirror: on/off
IR LEDs 36 pieces black LEDs
Infrared wavelength 850nm
IR distance: 30m
IR objective angle 600 (F = 6mm fixed lens)
IR LEDs on/off CDS auto control
Video output VBS 1.0 VPP (75© loading)
Video output BNC output
Power supply: 12V DC, 1.0A, 460mA [5.5W] (maximum)
Working temperatures: -100 to 500°C
Working humidity range: 20 to 80% RH (non-condensing)
Storage temperatures: -100 to 600°C
Storage humidity range: 20 to 95% RH (non-condensing)
Camera dimensions (L x W x H): 192 x 80 x 72mm
