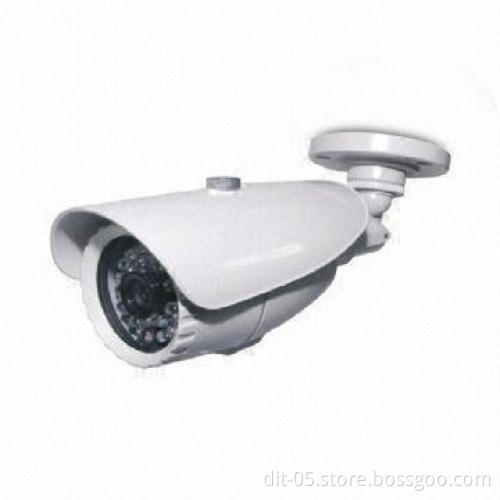

IR Camera, with High Resolution of 550TVL, 20 to 25m IR Distance and 1/3" Sony CCD

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C, T/T

Product Description

Image sensor: 1/3-inch Sony CCD

Horizontal resolution: 550TVL

Minimum illumination: 0.5 lux (0 lux when IR on)

Effective pixels:

Lens: 3.6, 6 and 8mm optional

IR LED: Ø5mm x 24 pieces

IR LED working distance: 20 to 25m

Viewing angle: 60 degrees standard (75, 60 and 45 degrees optional)

Gamma correction: 0.45

S/N ratio: ≥48dB

Infrared wavelength: 850nm

Electronic shutter time: 1/50 (1/60) to 1/100,000s

IP rating: IP66

Video output: 1.0Vp-p composite video, 75 ohms

Supply voltage: 12V DC ±10%, 270mA

Power consumption: about 3.0W

Operating temperature: -20 to +50 degree Celsius

Dimensions: Ø60 x 210mm

Weight: 0.4kg

PAL: (H) 752 x (V) 582 pixels

NTSC: (H) 768 x (V) 494 pixels

TV system: PAL/NTSC
