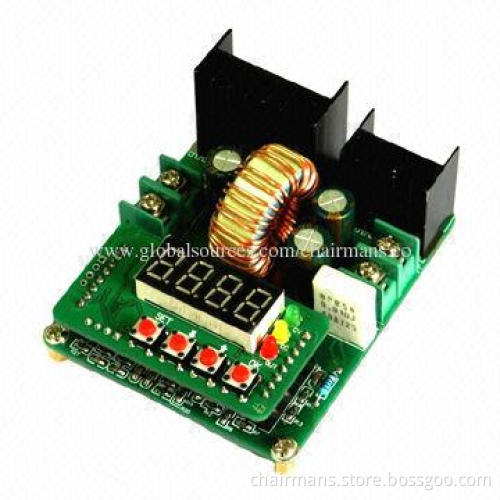

Digital Control Step Down LED Driver, 30V/8A, 150kHz Working Frequency
  • Digital Control Step Down LED Driver, 30V/8A, 150kHz Working Frequency
  • Digital Control Step Down LED Driver, 30V/8A, 150kHz Working Frequency
  • Digital Control Step Down LED Driver, 30V/8A, 150kHz Working Frequency
Digital Control Step Down LED Driver, 30V/8A, 150kHz Working Frequency
Digital Control Step Down LED Driver, 30V/8A, 150kHz Working Frequency
Digital Control Step Down LED Driver, 30V/8A, 150kHz Working Frequency

Digital Control Step Down LED Driver, 30V/8A, 150kHz Working Frequency

Get Latest Price
Payment Type:
L/C, T/T, Western Union or PayPal
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: L/C, T/T, Western Union or PayPal
Product Description
Product Description
  • Features:
    • Digital-controller content voltage/current: 30V/8A
    • Digital display, convenient and easy to use
    • Constant voltage and constant current state
    • OUT, CV and CC indicator light
    • Adjust output voltage and current value accurately
    • Automatic/manual switch voltage, current, power, capacity and other parameters display
    • It can be set whether automatic output or not after electrify
    • It can be set whether take turns to display voltage, current, power and capacity or not after output
    • 10 groups of storage location, free storage and bring up
    • One key to save voltage and current value
  • Specifications:
    • Input voltage: 6 - 32V
    • Output voltage: 0 - 30V
    • Output current: 0 - 8A
    • Voltage regulation/display resolution: 0.01V
    • Current regulation/display resolution: 0.001A
    • The minimum display resolution of power: 0.001W
    • The minimum display resolution of capacity: 0.001Ah
    • Conversion efficiency: up to 92%
    • The output ripple: ≤50mV
    • Working temperature: - 40 - + 85°C
    • Working frequency: 150kHz
    • Short-circuit protection: constant current
    • Input reverse connect protection: no, if necessary please install diode
    • Connection mode: terminals
    • Size (L x W x H): 80*66*33mm
    • Weight: 116g
  • Digital-controller content voltage/current: 30V/8A
  • Digital display, convenient and easy to use
  • Constant voltage and constant current state
  • OUT, CV and CC indicator light
  • Adjust output voltage and current value accurately
  • Automatic/manual switch voltage, current, power, capacity and other parameters display
  • It can be set whether automatic output or not after electrify
  • It can be set whether take turns to display voltage, current, power and capacity or not after output
  • 10 groups of storage location, free storage and bring up
  • One key to save voltage and current value
  • Input voltage: 6 - 32V
  • Output voltage: 0 - 30V
  • Output current: 0 - 8A
  • Voltage regulation/display resolution: 0.01V
  • Current regulation/display resolution: 0.001A
  • The minimum display resolution of power: 0.001W
  • The minimum display resolution of capacity: 0.001Ah
  • Conversion efficiency: up to 92%
  • The output ripple: ≤50mV
  • Working temperature: - 40 - + 85°C
  • Working frequency: 150kHz
  • Short-circuit protection: constant current
  • Input reverse connect protection: no, if necessary please install diode
  • Connection mode: terminals
  • Size (L x W x H): 80*66*33mm
  • Weight: 116g
