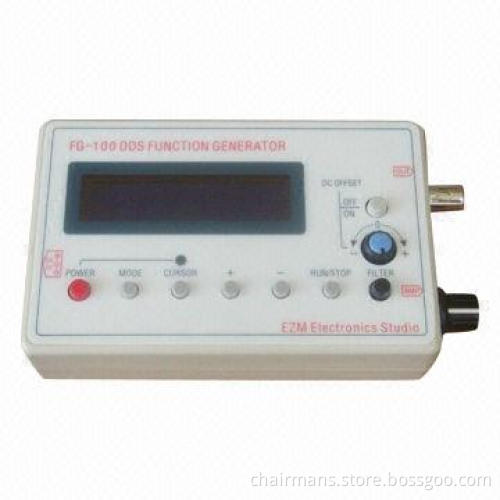

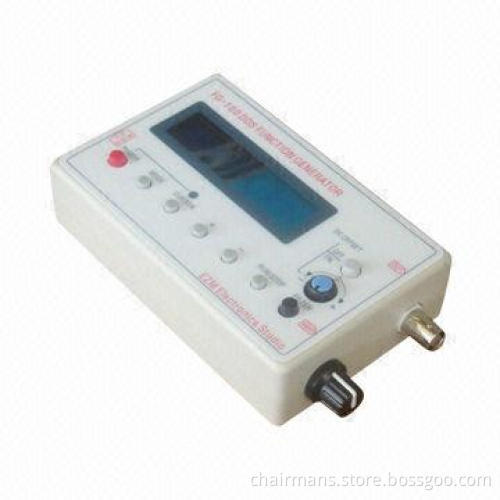

DDS Function Signal Generator, 1Hz-500kHz

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C, T/T, Western Union or PayPal

Product Description

The main output waveform: sine wave and square-wave, triangle wave, sawtooth wave

Maximum output amplitude: ±10Vpp (no-load)

Output impedance: 50Ω ±10%

DC bias: ± 10V (no-load)

Display: LCD 1602

Output frequency range:

Resolution: 1Hz

Power supply: DC 3.5-10V

Sine wave: 1Hz-500KHz

Square-wave: 1Hz-20kHz (the valid range)

Triangle wave: 1Hz-20KHz (the valid range)

Sawtooth wave: 1Hz~20kHz (the valid range)
