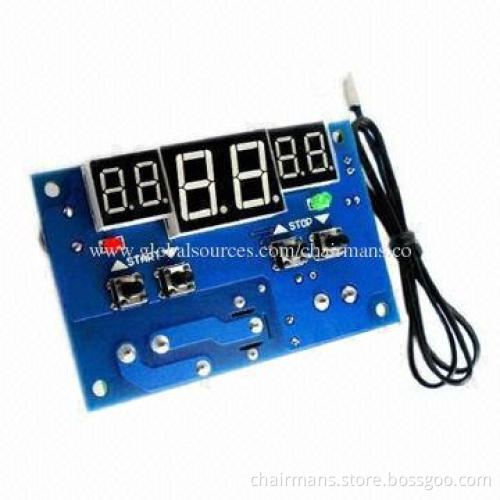

W1401 Intelligent Digital Temperature Controller, 12/24/220V DC Input Power

W1401 Intelligent Digital Temperature Controller, 12/24/220V DC Input Power

Get Latest Price

Payment Type:: L/C, T/T, Western Union or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C, T/T, Western Union or PayPal

Product Description

Specifications:

Temperature range: -9-99°C
Accuracy: 1°C
Control accuracy: 1°C
Setting range: -9-99°C
Refresh rate: 0.5S
Input power: 12V DC
Output: relay output, capacity 220V 10A/12V 10A
Environmental requirement: -10-60°C
Humidity: 20-85% RH
Size: 78x51mm
Temperature sensor: NTC (3950-10k 1%)

Features:

Applicable to various spatial temperature control, water temperature control, incubators and more
Lights, digital tube, key state description
Red start indicator:
Start (red) indicator light, which means that the relay is closed, the device begins to work
Green stop light:
Stop (green) light is on, which means that the relay is disconnected, the device stops working
Digital tube
Middle red LED display for the current detection temperature, the left green digital display tube as set start temperature, the right side of the green digital display for the set stop temperature
Button
Start "▲ ▼" to set start temperature
Stop "▲ ▼" to set stop temperature
Operating instructions

High-temperature start:

Set the starting temperature value > stop temperature value
When the detected temperature ≥ start temperature, the relay is closed, refrigeration equipment work
When the detected temperature ≤ stop temperature, the relay off, refrigeration equipment stops working
For example: set the starting temperature is 30°C, stop temperature is 25°C
When the detected temperature ≥ 30°C, the relay is closed, the start Indicator (red) lights;
When the detected temperature value ≤ 25°C, the relay off, stop Indicator (green) light.
Cold start: start temperature set value
When the detected temperature ≤ start temperature relay is closed, the heating device operates
When the detected temperature ≥ stop temperature, the relay off, the heating device is stopped
For example: set the starting temperature is 25°C, stop temperature is 30°C
When the detected temperature value ≤ 25°C, the relay is closed, the start Indicator (red) lights
When the detected temperature ≥ 30°C, the relay off, stop Indicator (green) light
3 set to start when the temperature value = stop temperature value, the relay off

Temperature range: -9-99°C

Accuracy: 1°C

Control accuracy: 1°C

Setting range: -9-99°C

Refresh rate: 0.5S

Input power: 12V DC

Output: relay output, capacity 220V 10A/12V 10A

Environmental requirement: -10-60°C

Humidity: 20-85% RH

Size: 78x51mm

Temperature sensor: NTC (3950-10k 1%)

Applicable to various spatial temperature control, water temperature control, incubators and more

Lights, digital tube, key state description

Red start indicator:

Start (red) indicator light, which means that the relay is closed, the device begins to work

Green stop light:

Stop (green) light is on, which means that the relay is disconnected, the device stops working

Digital tube

Middle red LED display for the current detection temperature, the left green digital display tube as set start temperature, the right side of the green digital display for the set stop temperature

Button

Start "▲ ▼" to set start temperature

Stop "▲ ▼" to set stop temperature

Operating instructions

Set the starting temperature value > stop temperature value

When the detected temperature ≥ start temperature, the relay is closed, refrigeration equipment work

When the detected temperature ≤ stop temperature, the relay off, refrigeration equipment stops working

For example: set the starting temperature is 30°C, stop temperature is 25°C

When the detected temperature ≥ 30°C, the relay is closed, the start Indicator (red) lights;

When the detected temperature value ≤ 25°C, the relay off, stop Indicator (green) light.

Cold start: start temperature set value

When the detected temperature ≤ start temperature relay is closed, the heating device operates

When the detected temperature ≥ stop temperature, the relay off, the heating device is stopped

For example: set the starting temperature is 25°C, stop temperature is 30°C

When the detected temperature value ≤ 25°C, the relay is closed, the start Indicator (red) lights

When the detected temperature ≥ 30°C, the relay off, stop Indicator (green) light

3 set to start when the temperature value = stop temperature value, the relay off
