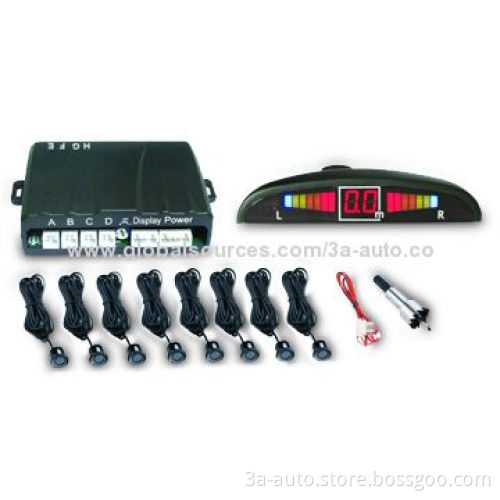

Parking Sensors/Radars/Assist System with LED Display and 12V DC Voltage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

8 sensors system, complete front and rear protection
Front: foot brake starts and rear back gear starts
Good-quality PC and ABS housing
Universal features, fits any model of any brand
The sensors aid detecting potential obstacles and enable accurate distance measurement to make reversing safe and convenient
Automatic-detecting and automatic-alarming mechanism
Easy DIY installation wiring
Left/right orientation indication
Detection range: 1.5 to 0.2m acoustic signal increases in frequency, when obstacles move closer within 1.50m
Three colors of the LED display (green, yellow, and red) will light up according to obstacle distance:
- 1.5 to 1.0m: green, safe reversing
- 1.0 to 0.5m: yellow, slow reversing
- 0.5 to 0.3m, stop reversing
Three-stage progressive sound to prevent bumping:
- 1.5 to 1.0m: long interval bi-bi-bi and safe reversing
- 1.0 to 0.5m: short interval bi-bi-bi, more harsher when closed and slow reversing
- 0.5 to 0.3m: continuous bi and stop reversing
Voltage: 12V DC
Power consumption: 100mA (maximum)
All weather design: -35 to 80°C
Beep volume: ≥80dB
Standard: CE

Color gift box includes:

Sensors: 8 pieces
Sensor type: sticker and built-in (20 and 24mm)
Sensor colors: black (standard), white, red, rose pink, dark green, blue, silver gray, and golden
Fits to built-in sensor size drill-head

8 sensors system, complete front and rear protection

Front: foot brake starts and rear back gear starts

Good-quality PC and ABS housing

Universal features, fits any model of any brand

The sensors aid detecting potential obstacles and enable accurate distance measurement to make reversing safe and convenient

Automatic-detecting and automatic-alarming mechanism

Easy DIY installation wiring

Left/right orientation indication

Detection range: 1.5 to 0.2m acoustic signal increases in frequency, when obstacles move closer within 1.50m

Three colors of the LED display (green, yellow, and red) will light up according to obstacle distance:

Three-stage progressive sound to prevent bumping:

1.5 to 1.0m: long interval bi-bi-bi and safe reversing
1.0 to 0.5m: short interval bi-bi-bi, more harsher when closed and slow reversing
0.5 to 0.3m: continuous bi and stop reversing

Voltage: 12V DC

Power consumption: 100mA (maximum)

All weather design: -35 to 80°C

Beep volume: ≥80dB

Standard: CE

1.5 to 1.0m: green, safe reversing

1.0 to 0.5m: yellow, slow reversing

0.5 to 0.3m, stop reversing

1.5 to 1.0m: long interval bi-bi-bi and safe reversing

1.0 to 0.5m: short interval bi-bi-bi, more harsher when closed and slow reversing

0.5 to 0.3m: continuous bi and stop reversing

Sensors: 8 pieces
