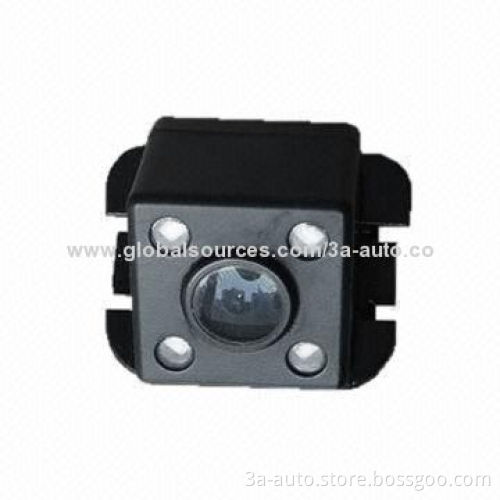

Car Rear-view Camera for Toyota

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Imaging device: PC1030/PC3030/PC1089/OV7959 (optional)

Resolution: 648 x 488/682 x 504/762 x 504/656 x 492 pixels (optional)

Imaging area: 3.6mm x 2.7mm/3.8mm x 2.9mm/4.6 x 3.6mm/4.0 x3.0mm (optional)

Image sensor: 1/4-inch/1/3.7-inch/1/3-inch/1/3.6-inch (optional)

Video format: NTSC/PAL (optional)

Video output signal: CVBS 1.0VPP 75©

Frame rate: 30fps

Signal to noise ratio: >50dB(AOC on)

Dynamic range: >80dB

Minimum illumination: 0.2 lux

Viewing angle: 170°

Optical lens: EFL=1.8mm

Operating environment temperatures: -20 to +85°C, 95% RH maximum

Storage environment temperatures: -40 to + 100°C, 95% RH maximum

Waterproof index: IP68

Operating voltages: 11-18V DC

Operating current: d100mA

Alert distance rod line: customers can select references line for backing car (about 0.5m-3m)
