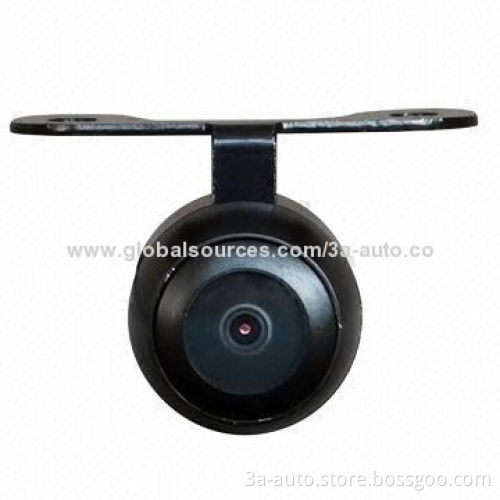

CMOS Rear-view Butterfly Mini Camera

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Imaging device: PC1030/PC3030/PC1089 optional

Resolutions: 648 x 488/682 x 504/762 x 504 (optional)

Imaging areas: 3.6 x 2.7/3.8 x 2.9/4.6 x 3.6mm (optional)

Image sensors: 1/4/1/3.7/1/3 inches (optional)

Video formats: NTSC/PAL (optional)

Video output signal: CVBS 1.0VPP 75Ω

Frame rate: 30fps

Signal to noise ratio: ≥50dB (AOC on)

Dynamic range: ≥80dB

Minimum illumination: 0.2 lux

Viewing angle: 170°

Optical lens: EFL=1.8mm

Operating environment temperature: -20 to +85°C, 95% RH maximum

Waterproof index: lP67

Operating voltage: 11 to 18V DC

Operating current: ≤120mA

Alert distance rod line: customers can select references line for backing car (about 0.5 to 3M)

Length of BMW waterproof connector cable: 8M
