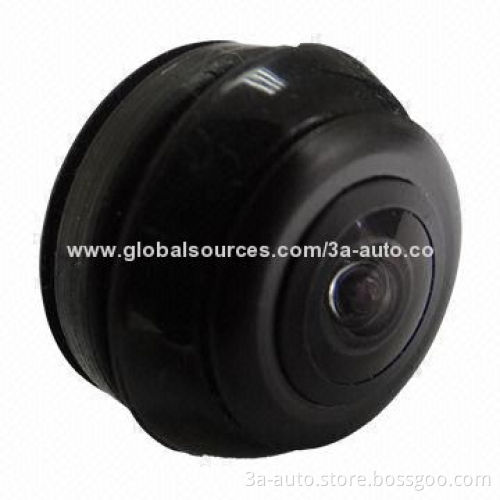

Universal vehicle backup camera

Night vision

Imaging device: PC3030

Resolution: 682 x 504 pixels

Imaging area: 3.8 x 2.9mm

Image sensor: 1/3.7-inch

Video format: NTSC

Video output signal: CVBS 1.0VPP, 75©

Frame rate: 30fps

Signal to noise ratio: >50dB (AOC on)

Dynamic range: >80dB

Minimum illumination: 0.15 Lux

Wide angle: 170°

Optical lens: EFL=2.0mm

Operating temperature: -20 to +85°C, 95% RH (maximum)

Storage temperature: -40 to + 100°C, 95% RH (maximum)

Waterproof index: IP67

Power supply: 11-14V DC

Operating current: d145mA (8IR current included)

Alert distance rod line: user's can select references line for reversing car (0.5-3m about)

Length of BMW waterproof connector cable: 8m

8 IR LED lights activate automatically to provide a better view at night

Horizontal resolution: 500 lines
