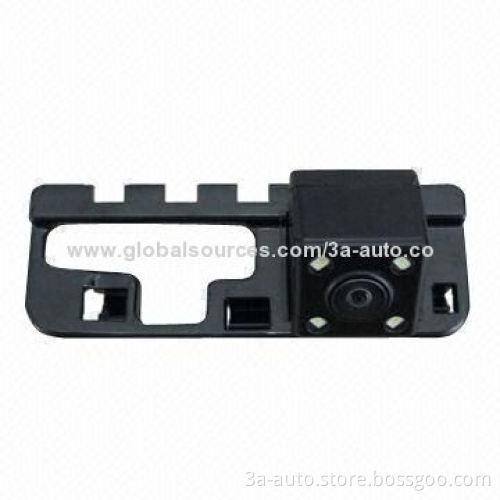

Waterproof Backup Rearview Camera System for Car Use, 170 Degrees Viewing Angle

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Imaging device: PC1030/PC3030/PC1089/OV7959 (optional)

Resolution: 648 x 488/682 x 504/762 x 504/656 x 492 pixels (optional)

Imaging area: 3.6 x 2.7/3.8 x 2.9/4.6 x 3.6/4.0 x 3.0mm (optional)

Image sensor: 1/4/1/3.7/1/3/1/3.6-inch (optional)

Video format: NTSC/PAL (optional)

Video output signal: CVBS 1.0Vp-p, 75 Ohms

Frame rate: 30fps

Signal to noise ratio: >50dB (AOC-on)

Dynamic range: >80dB

Minimum illumination: 0.2 Lux

Viewing angle: 170 degrees

Optical lens: EFL = 1.8mm

Operating environment temperature: -20 to +85°C, 95% RH (maximum)

Storage environment temperature: -40 to + 100°C, 95% RH (maximum)

Waterproof index: IP68

Operating voltage: 11-18V DC

Operating current: d100mA

Alert distance rod line: customers' can select references line for tracking car (about 0.5-3m)
