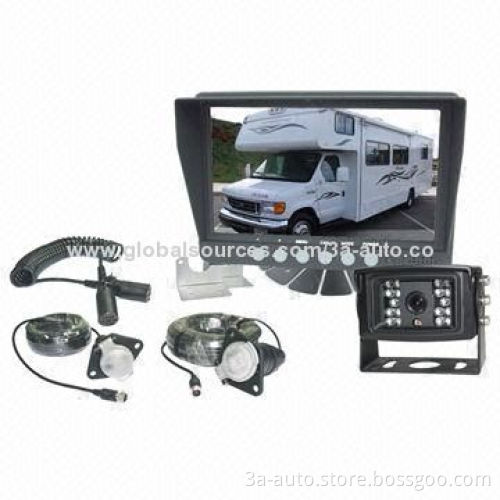

Truck Rear-view System with Backup Rear-view Camera for Bus and 7-inch Monitor

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

7-inch quad monitor

Working voltage: 12-32V

Can repeat the view picture

Dimension: 9-nch digital color LCD quad monitor

Resolution: 800 * 3(RGB) * 480TV

System: NTSC/PAL

Multiple menu languages: English, Dutch, French, Spanish, Russian, German and Italian

Monitors can be optional with loudspeaker or not, users can adjust sound on the control

Support 4 cameras video simultaneous input

Support 4 cameras audio simultaneous input

Can repeat the view picture, 1-60 seconds can adjustment

Single, dual, triple, quad image for optional

Normal or mirrored picture can be switched separately on ach camera

Separate trigger control wire on each camera

Monitor will automatic switch-over the image to the corresponding triggered camera and back to the original mode when the trigger stops

The trigger delay time can be adjusted (0-4 seconds) on each camera

In standby mode, monitor will turn on automatically when triggered and will switch to the corresponding trigger camera image

Trigger end after shutdown

Self-protection of the DC voltage at the short-circuit

Sensor: 1/4 sharp CCD

Resolution: N: 510 x 492 pixels P: 500 x 582 pixels

Lens: 2.5mm

Minimum illumination: 0 Lux (LED on)

IR LED: 18 pieces

Night vision distance: 45ft

Waterproof: IP69

Viewing angle: 120°

Power voltage: 12V

Operating temperature: -20 to 70°C
